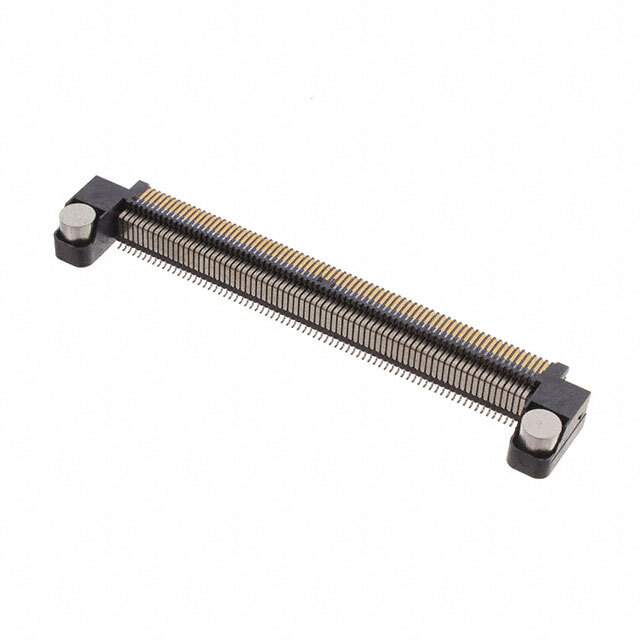

ERM8-075-01-S-D-RA-L-TR Real Image
Same model may have multiple batches, images only for reference.

ERM8-075-01-S-D-RA-L-TR

Part No ERM8-075-01-S-D-RA-L-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HDR 150POS R/A SMD GOLD
Datasheet
ERM8-075-01-S-D-RA-L-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features Position Connector
Manufacturer Samtec Inc.
Series Edge Rate™ ERM8
Package Reel - TR
Family Name ERM8-075
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SAM15412TR, SAM15412DKR, SAM15412CT, SAM15412DKR-ND, ERM8-075-01-S-D-RA-L-TR-ND, SAM15412DKRINACTIVE
Quantity per package 125
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 854878-ERM8-075-01-S-D-RA-L-TR
Ultra Librarian 3D Model Ultra Librarian ERM8-075-01-S-D-RA-L-TR CAD Model

Description

The Edge Rate™ ERM8 series connector is a high-quality, reliable solution for connecting electronic components.

  • Feature: Position Connector
  • Package: Reel - TR
  • Series: ERM8
  • Manufacturer: Samtec Inc.
