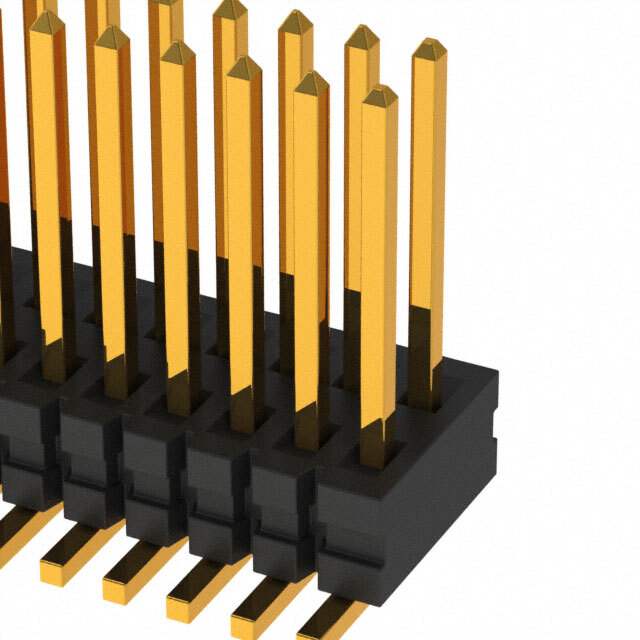

FTE-150-01-G-DV Real Image
Same model may have multiple batches, images only for reference.

FTE-150-01-G-DV

Part No FTE-150-01-G-DV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description .8MM MICRO TERMINAL STRIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.031" (0.80mm)
Style Board to Board
Shrouding Unshrouded
Number of Positions 100
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.047" (1.20mm)
Mounting SMD (SMT)
Termination Solder
Contact Length - Mating 0.075" (1.90mm)
Insulation Height 0.055" (1.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Contact Finish - Post Gold
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place
Temperature Range - Operating -55°C to 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 2.7A per Contact
Win Source Part Number 33922-FTE-150-01-G-DV
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian FTE-150-01-G-DV CAD Model

Description

The Samtec Inc. 33922-FTE-150-01-G-DV is a board-to-board header connector with a pitch of 0.031 inches (0.80mm). It has 100 male pin contacts and is designed to be used in industrial applications.

  • Positions: 100
  • Contact Type: Male Pin
  • Pitch: 0.031 inches (0.80mm)
  • Current Rating: 2.7A per contact
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Contact Finish: Gold (10μin (0.25μm) mating, flash post)
  • Row Spacing: 0.047 inches (1.20mm)
  • Packaging: Reel - TR
  • Features: Pick and Place

This connector has a medium popularity and limited supply and demand status in the market.
