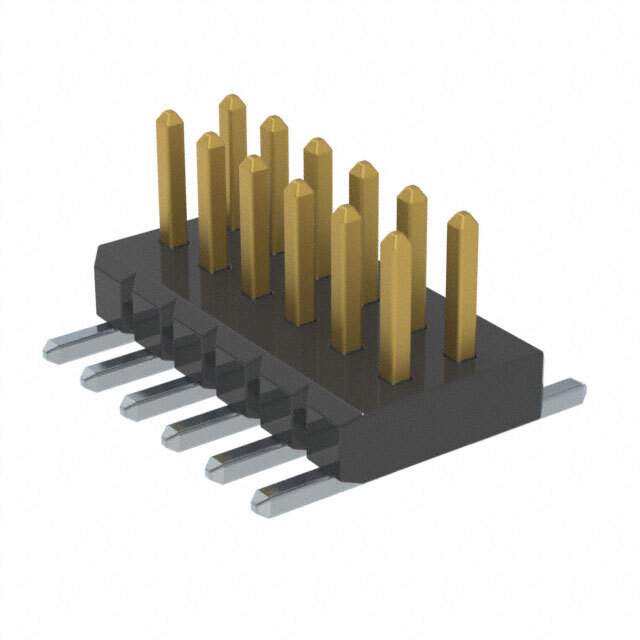

FTM-106-02-F-DV Real Image
Same model may have multiple batches, images only for reference.

FTM-106-02-F-DV

Part No FTM-106-02-F-DV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 12POS 1MM  /  Connector Header Surface Mount 12 position 0.039" (1.00mm)
Datasheet
FTM-106-02-F-DV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTM
Package Tube
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.039" (1.00mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.075" (1.90mm)
Insulation Height 0.038" (0.97mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 2.8A per Contact
Base Product Number FTM-106
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 97
Win Source Part Number 1100226-FTM-106-02-F-DV
Ultra Librarian 3D Model Ultra Librarian FTM-106-02-F-DV CAD Model

Description

The FTM-106-02-F-DV is a 12-position male pin header connector from Samtec Inc.

  • Win Source Part Number: 1100226
  • Application: board-to-board
  • Mounting: surface-mount device (SMD)
  • Pitch-mating: 0.039" (1.00mm)
  • Current Rating: 2.8A per contact
  • Temperature Range: -55°C to 125°C
  • Package: 97
