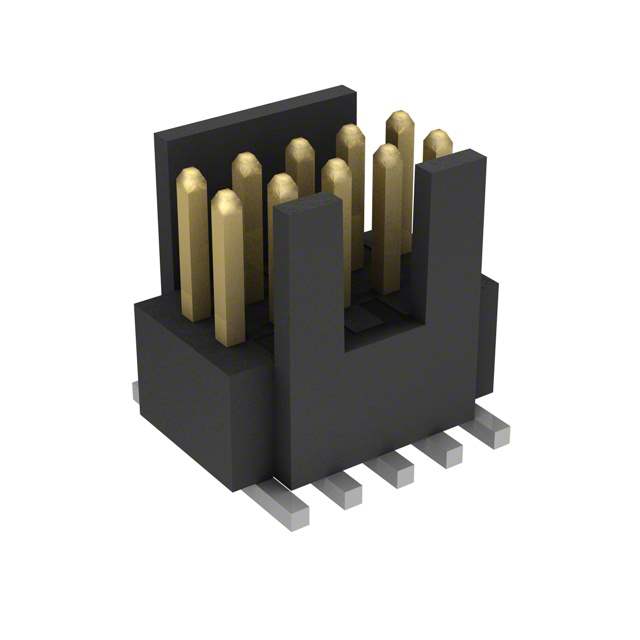

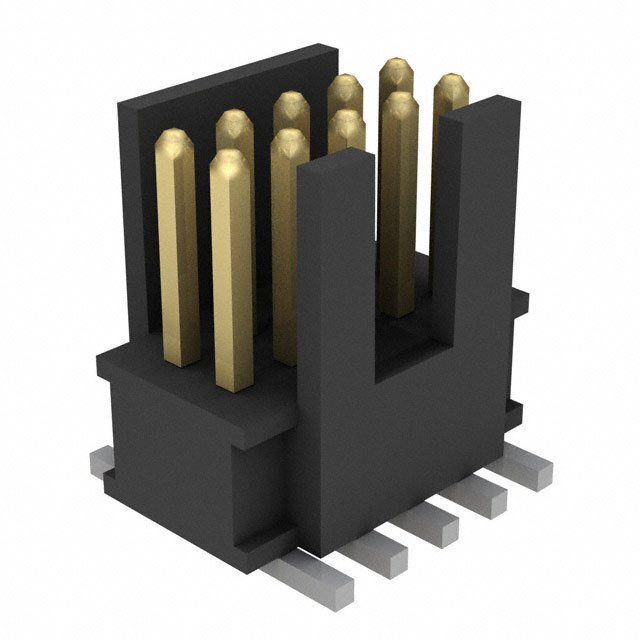

FTSH-105-01-F-DV-K Samtec Inc. FTSH-105-01-F-DV-K Real Image FTSH-105-01-F-DV-K label picture 2 FTSH-105-01-F-DV-K real image
Same model may have multiple batches, images only for reference.
FTSH-105-01-F-DV-K Samtec Inc. FTSH-105-01-F-DV-K Real Image FTSH-105-01-F-DV-K label picture 2 FTSH-105-01-F-DV-K real image
FTSH-105-01-F-DV-K Samtec Inc. FTSH-105-01-F-DV-K Real Image FTSH-105-01-F-DV-K label picture 2 FTSH-105-01-F-DV-K real image
Same model may have multiple batches, images only for reference.

FTSH-105-01-F-DV-K

Part No FTSH-105-01-F-DV-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER 10POS DUAL .05" SMD
Datasheet
FTSH-105-01-F-DV-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Packaging Tube/Rail
Status Active
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.099" (2.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3μin (0.08μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Shroud
Temperature Range - Operating -55°C to 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3.3A per Contact
Win Source Part Number 33981-FTSH-105-01-F-DV-K
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FTSH-105-01-F-DV-K CAD Model

Description

The Samtec Inc. 33981-FTSH-105-01-F-DV-K is a male pin header connector with a keying shroud and a pitch-mating of 0.050" (1.27mm).

  • Current Rating: 3.3A per contact
  • Flammability Rating: UL94 V-0
  • Suitable for: Board to board or cable style applications
  • Temperature Range: -55°C to 125°C
  • Insulation Material: Liquid crystal polymer (LCP)
  • Contact Finish-Mating: Gold with a thickness of 3μin (0.08μm)
