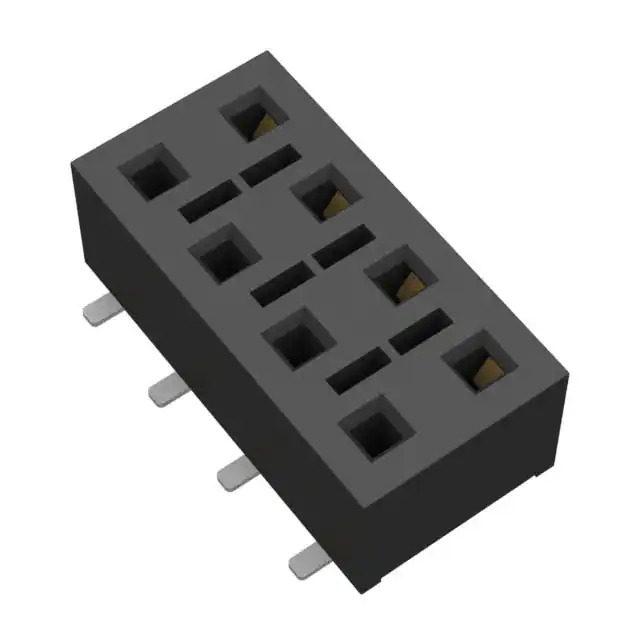

HLE-104-02-F-DV

Name: HLE-104-02-F-DV
Brand: Samtec Inc.
SKU: 1353712
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HLE-104-02-F-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 8POS 0.1 GOLD SMD / 8 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	HLE
Package	Tube
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.144" (3.66mm)
Contact Length - Post	-
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	-
Contact Finish - Post	Tin
Mated Stacking Heights	-
Ingress Protection	-
Features	-
Current Rating (Amps)	4.1A per Contact
Voltage Rating	400VAC
Applications	-
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	-
Base Product Number	HLE-104
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1353712-HLE-104-02-F-DV
Ultra Librarian 3D Model	Ultra Librarian HLE-104-02-F-DV CAD Model

Alternative Products

Description

The HLE-104-02-F-DV is a rectangular connector header from Samtec Inc.

Series: HLE
Number of Positions: 8
Number of Rows: 2
Mounting Type: Surface mount
Application: Board-to-board
Pitch: 0.100" (2.54mm)
Contact Finish: Gold
Contact Finish Thickness: 3.00µin (0.076µm)
Fastening Type: Push-pull
Insulation Height: 0.144" (3.66mm)
Contact Shape: Square
Voltage Rating: 400VAC
REACH: Unaffected
ECCN: EAR99
