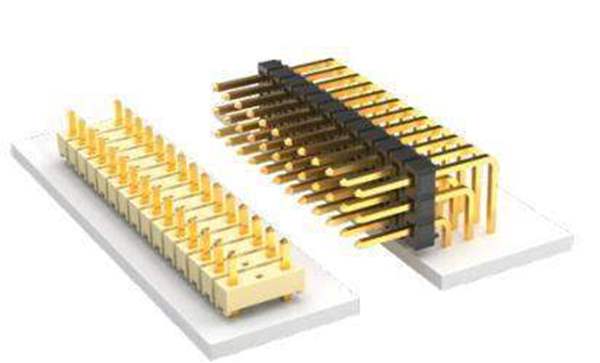

HTSW-106-12-G-D-RA Samtec Inc.
Same model may have multiple batches, images only for reference.

HTSW-106-12-G-D-RA

Part No HTSW-106-12-G-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 2.54MM
Datasheet
HTSW-106-12-G-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209023-HTSW-106-12-G-D-RA
Manufacturer Samtec Inc.
Category Connectors, Interconnects-Rectangular Connectors-Headers, Male Pins
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 12
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle
Ultra Librarian 3D Model Ultra Librarian HTSW-106-12-G-D-RA CAD Model

Description

Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
