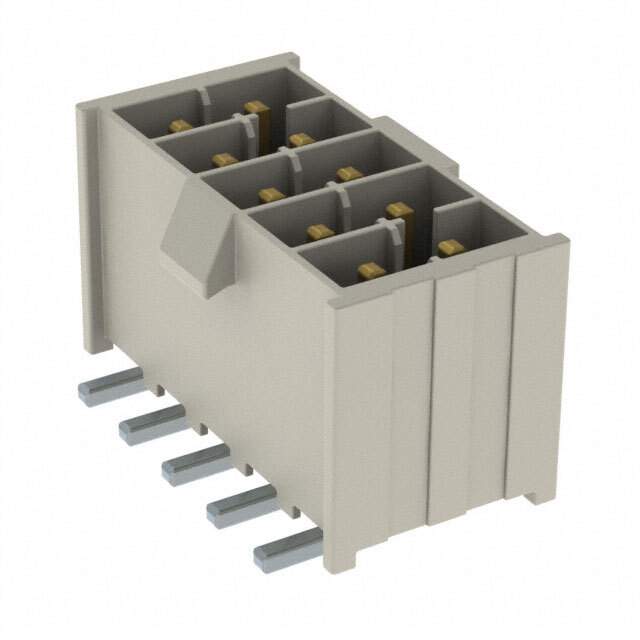

IPL1-105-02-S-D-K

Name: IPL1-105-02-S-D-K
Brand: Samtec Inc.
SKU: 776887
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IPL1-105-02-S-D-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SHROUDED PWR HEADER 10POS / Conn Wire to Board HDR 10 POS 2.54mm Solder ST Top Entry SMD Tube
Datasheet	IPL1-105-02-S-D-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	Mini Mate IPL1
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.215" (5.46mm)
Insulation Height	0.320" (8.13mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Voltage Rating	675VAC, 954VDC
Win Source Part Number	776887-IPL1-105-02-S-D-K
Popularity	Medium
Supply and Demand Status	Limited
Family Name	IPL1
Introduction Date	October 07, 2003
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IPL1-105-02-S-D-K CAD Model

Alternative Products

Description

The Mini Mate IPL1 series connector is a high-quality header that is perfect for use in a variety of applications.

Positions: 10
Contact Type: Male pin
Fastening Type: Locking ramp
Model: IPL1-105-02-S-D-K
Packaging: Tube
Pitch: 0.100 inches (2.54mm)
Application: Board to cable/wire
