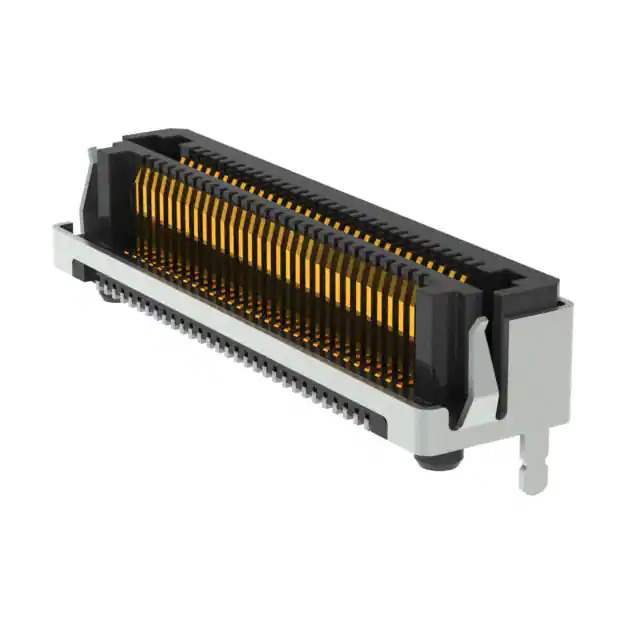

LSHM-130-02.5-L-DV-A-S-K-TR

Name: LSHM-130-02.5-L-DV-A-S-K-TR
Brand: Samtec Inc.
SKU: 847192
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LSHM-130-02.5-L-DV-A-S-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SELF-MATE 60POS SMD GOLD / 60 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
Datasheet	LSHM-130-02.5-L-DV-A-S-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ LSHM
Package	Tape & Reel
Product Status	Active
Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Number of Positions	60
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Pick and Place, Shielded
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	5mm, 5.5mm, 6.5mm, 8.5mm
Height Above Board	0.156" (3.96mm)
Base Product Number	LSHM-130
Standard Package	575 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	847192-LSHM-130-02.5-L-DV-A-S-K-TR
Ultra Librarian 3D Model	Ultra Librarian LSHM-130-02.5-L-DV-A-S-K-TR CAD Model

Alternative Products

Description

The LSHM-130-02.5-L-DV-A-S-K-TR is an edge type mezzanine connector from Samtec Inc. LSHM-130-02.5-L-DV-A-S-K-TR from Samtec Inc.

Series: Razor Beam™ LSHM
Connector Type: Rectangular Connector, Mezzanine
Number of Positions: 60
Features: Board Guide, Pick and Place, Shielded
Mating Type: Self-Mating, Non-Gendered, Hermaphroditic
Contact Finish: Gold
Pitch: 0.020" (0.50mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Mounting Type: Surface Mount
Height Above Board: 0.156" (3.96mm)
