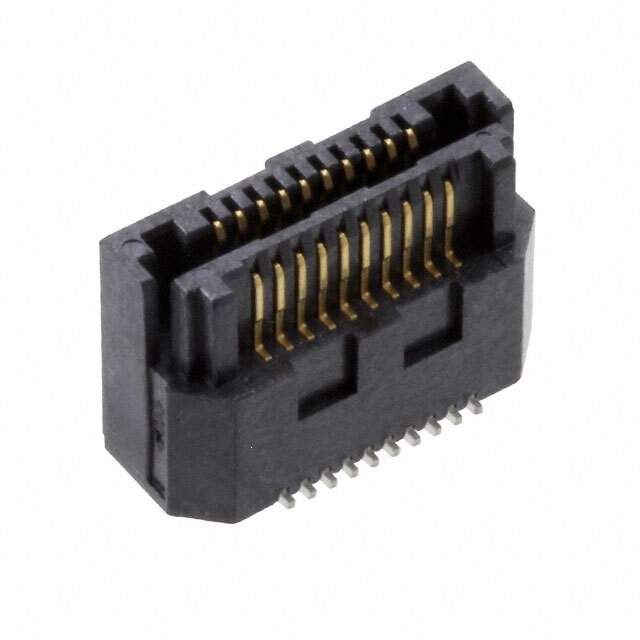

LSS-110-02-F-DV-A

Name: LSS-110-02-F-DV-A
Brand: Samtec Inc.
SKU: 766896
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LSS-110-02-F-DV-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.635MM TERMINAL/SKT COMBO
Datasheet	LSS-110-02-F-DV-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	Razor Beam LSS
Packaging	Tube
Connector Type	Self Mating, Non-Gendered
Number of Positions	20
Pitch	0.025" (0.64mm)
Number of Rows	2
Mounting	SMD
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	3μin (0.08μm)
Mated Stacking Heights	9mm, 10mm, 12mm
Height Above Board	0.287" (7.30mm)
Win Source Part Number	766896-LSS-110-02-F-DV-A
Popularity	Medium
Supply and Demand Status	Balance
Family Name	LSS
Introduction Date	December 16, 2009
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian LSS-110-02-F-DV-A CAD Model

Alternative Products

Description

The Razor Beam LSS-110-02-F-DV-A connector is a line of self-mating, non-gendered connectors designed for board-to-board applications in the Razor Beam LSS series.

Series: LSS
Positions: 20 (2 Rows)
Pitch: 0.025 inches (0.64mm)
Contact Finish: Gold
Contact Finish Thickness: 3μin (0.08μm)
Stack Height: 9mm, 10mm, 12mm
Height Above Board: 0.287 inches (7.30mm)
Mounting Type: SMD
Packaging: Tube
