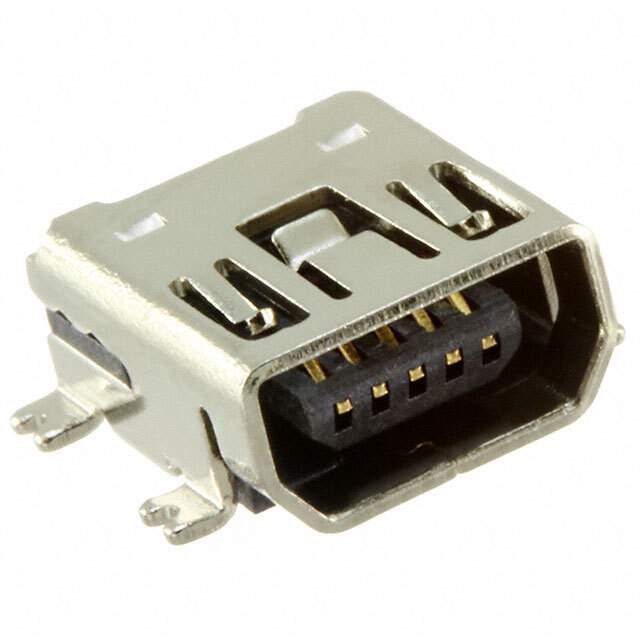

MUSB-05-S-AB-SM-A Real Image
Same model may have multiple batches, images only for reference.

MUSB-05-S-AB-SM-A

Part No MUSB-05-S-AB-SM-A
Manufacturer Samtec Inc.
Catalog USB, DVI, HDMI Connectors
Datasheet
MUSB-05-S-AB-SM-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Samtec Inc.
Series MUSB
Package Tray
Connector Type USB - mini AB
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Solder Retention
Temperature Range - Operating -50°C ~ 85°C
Number of Ports 1
Voltage - Rated 30V
Mating Cycles 1500
Shielding Unshielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number MUSB-05
Other Names MUSB-05-S-AB-SM-A,MUSB-05-S-AB-SM-A-R,SAM8952
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285029-MUSB-05-S-AB-SM-A
Ultra Librarian 3D Model Ultra Librarian MUSB-05-S-AB-SM-A CAD Model

Description

The Samtec Inc. 1285029-MUSB-05-S-AB-SM-A is a surface mount USB mini AB connector with a 0.031" (0.80mm) pitch and 5 contacts.

  • Pitch: 0.031" (0.80mm)
  • Contacts: 5
  • Color: Black
  • Contact Finish: Gold
  • Mating Cycle: 1500
  • Compliance: ROHS3
