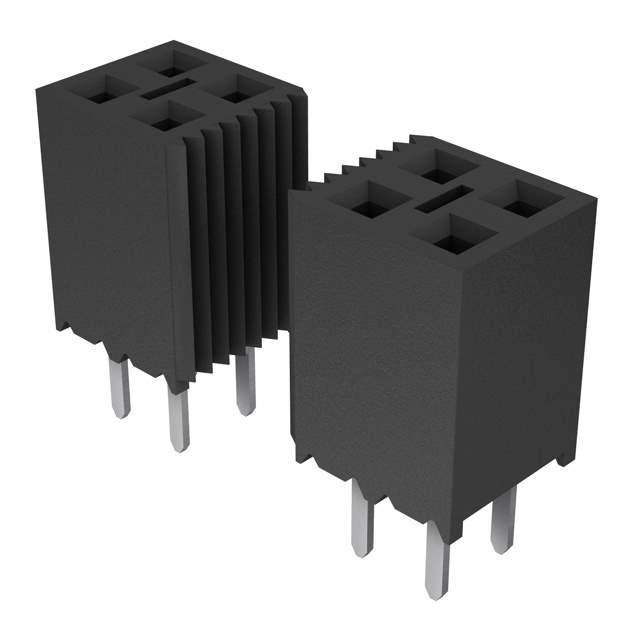

Same model may have multiple batches, images only for reference.

BCS-133-L-D-TE

Name: BCS-133-L-D-TE
Brand: Samtec Inc.
SKU: 1349632
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	BCS-133-L-D-TE
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 66POS 0.1 GOLD PCB / 66 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	BCS-133-L-D-TE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Claw™ BCS
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	66
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Contact Length - Post	0.122" (3.10mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.6A per Contact
Voltage Rating	475VAC
Insulation Material	Liquid Crystal Polymer (LCP) , Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	BCS-133
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1349632-BCS-133-L-D-TE
Ultra Librarian 3D Model	Ultra Librarian BCS-133-L-D-TE CAD Model

Alternative Products

Description

The Samtec Tiger Claw™ BCS series connector is a rectangular connector with 66 positions in a receptacle configuration.

Contact Type: Female Socket
Mating Finish: Gold
Post Finish: Tin
Voltage Rating: 475VAC
Current Rating: 4.6A per Contact
Pitch: 0.100" (2.54mm)
Row Spacing: 0.100" (2.54mm)
Contact Length: 0.122" (3.10mm)
Insulation Height: 0.290" (7.37mm)
Insulation Material: Liquid Crystal Polymer (LCP) and Glass Filled
Insulation Color: Black
Mounting Type: Through Hole
Fastening Type: Push-Pull
Series: Tiger Claw™ BCS
Package: Tube
