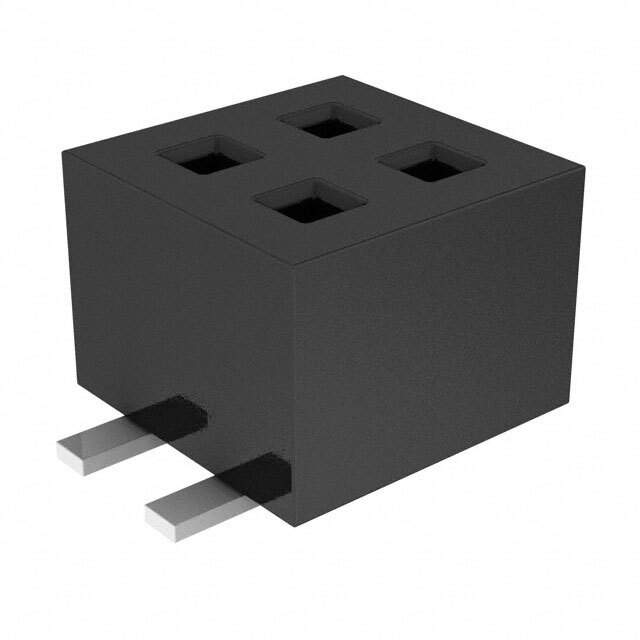

Same model may have multiple batches, images only for reference.

CLP-102-02-F-D-TR

Name: CLP-102-02-F-D-TR
Brand: Samtec Inc.
SKU: 1339780
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CLP-102-02-F-D-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 4POS 0.05 GOLD SMD / 4 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet	CLP-102-02-F-D-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	CLP
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.084" (2.14mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3.3A per Contact
Voltage Rating	240VAC, 330VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	CLP-102
Standard Package	1,725
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1339780-CLP-102-02-F-D-TR
Ultra Librarian 3D Model	Ultra Librarian CLP-102-02-F-D-TR CAD Model

Alternative Products

Description

The CLP-102-02-F-D-TR is a female socket connector designed for board-to-board applications.

Pitch-Mating: 0.050 inches
Row Spacing-Mating: 0.050 inches
Current Rating: 3.3A per contact
Voltage Rating: 240VAC and 330VDC
Package: Tape and Reel
Insulation Height: 0.084 inches
Temperature Range: -55°C to 125°C
REACH: Unaffected
