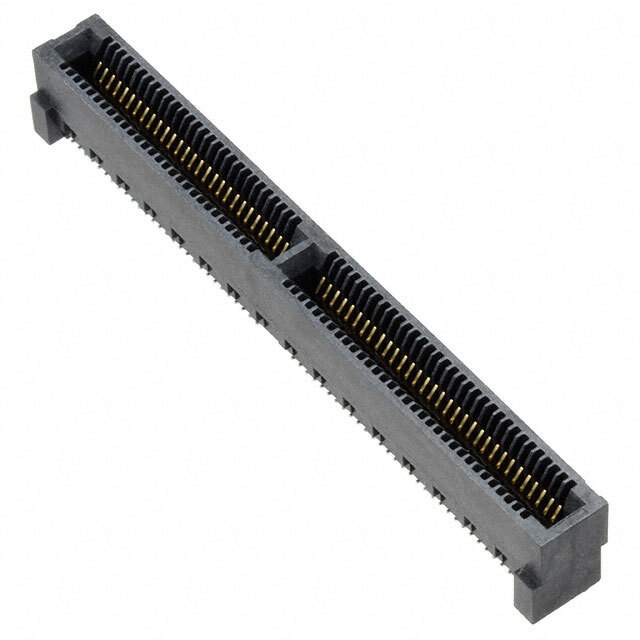

HSEC8-160-01-S-DV-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

HSEC8-160-01-S-DV-A-K-TR

Part No HSEC8-160-01-S-DV-A-K-TR
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FML 120POS 0.031 / 120 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Datasheet
HSEC8-160-01-S-DV-A-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Samtec Inc.
Packaging Reel - TR
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 60
Number of Positions 120
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide, Locking Ramp
Mounting Surface Mount
Termination Solder
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number HSEC8-160
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SAM13191DKR-ND,SAM13191DKRINACTIVE,SAM13191DKR,SAM13191TR,SAM13191CT,HSEC8-160-01-S-DV-A-K-TR-ND,HSEC8-160-01-S-DV-A-K-FR
Standard Package 275
Win Source Part Number 1334021-HSEC8-160-01-S-DV-A-K-TR
Ultra Librarian 3D Model Ultra Librarian HSEC8-160-01-S-DV-A-K-TR CAD Model

Description

The Samtec Inc. HSEC8-160-01-S-DV-A-K-TR is a female card edge connector with a pitch of 0.031 inches (0.80mm) and 120 positions.

  • Pitch: 0.031 inches (0.80mm)
  • Positions: 120
  • Color: Black
  • Features: Board Guide and Locking Ramp
  • Contact Type: Cantilever
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: Beryllium Copper
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Mounting: Surface Mountable
  • Card Type: Non-Specified Dual Edge
  • Positions per Bay/Row: 60
  • Card Thickness: 0.062 inches (1.57mm)
  • Readout: Dual
  • Operating Temperature: -55°C to 125°C
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
