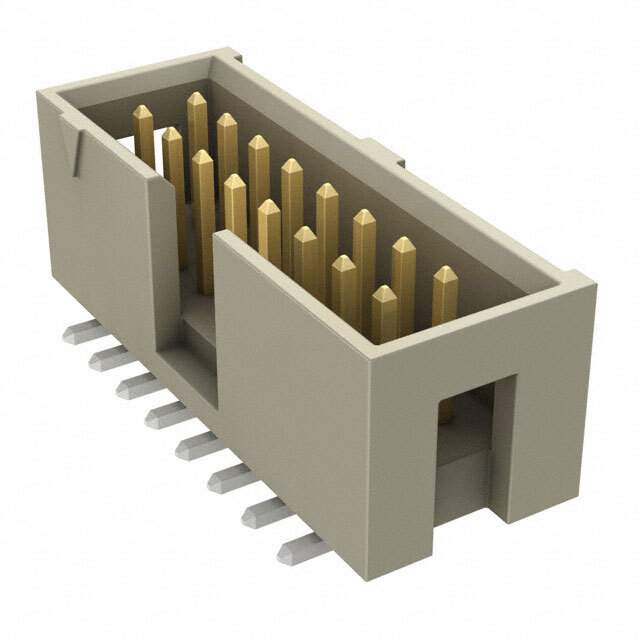

HTST-108-01-L-DV Real Image
Same model may have multiple batches, images only for reference.

HTST-108-01-L-DV

Part No HTST-108-01-L-DV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 16POS 2.54MM / Connector Header Surface Mount 16 position 0.100" (2.54mm)
Datasheet
HTST-108-01-L-DV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Samtec Inc.
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.250" (6.35mm)
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3.4A per Contact
Base Product Number HTST-108
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number HTST-108-01-L-DV-ND,SAM10528
Standard Package 20
Win Source Part Number 1332365-HTST-108-01-L-DV
Ultra Librarian 3D Model Ultra Librarian HTST-108-01-L-DV CAD Model

Description

The Samtec Inc. 1332365-HTST-108-01-L-DV is a male pin rectangular connector.

  • Packaging: Tube
  • Positions: 16
  • Feature: Keying Slot
  • Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Flammability Rating: UL94 V-0
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Mounting: Surface Mount
  • Style: Board to Cable/Wire
  • Pitch Mating: 0.100" (2.54mm)
  • Contact Finish Mating: Gold (10.0µin or 0.25µm)
  • Contact Finish Post: Tin
  • Insulation Color: Natural
  • Shrouding: Shrouded - 4 Wall
  • Row Spacing Mating: 0.100" (2.54mm)
  • Contact Shape: Square
  • Temperature Range: -55°C ~ 125°C
  • Contact Length Mating: 0.250" (6.35mm)
  • MSL Level: 1 (Unlimited)
  • Current Rating: 3.4A per contact
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Other Part Number: HTST-108-01-L-DV-ND,SAM10528
