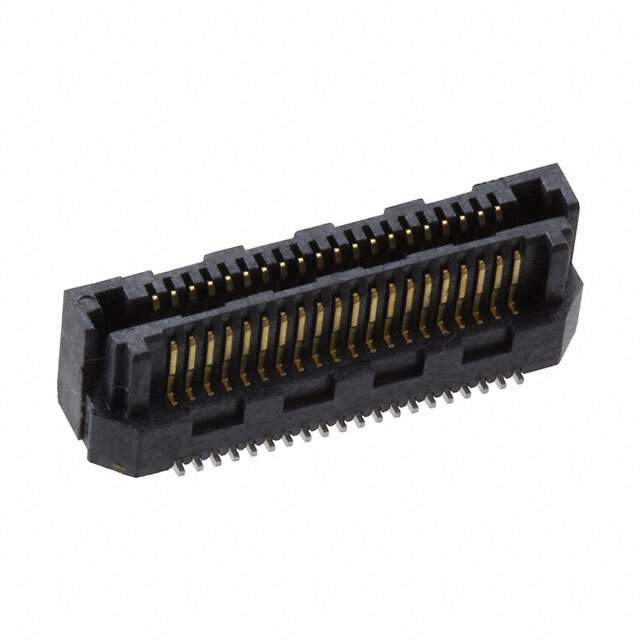

LSS-120-03-L-DV-A

Name: LSS-120-03-L-DV-A
Brand: Samtec Inc.
SKU: 1338206
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LSS-120-03-L-DV-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SELF-MATE 40POS SMD GOLD / 40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
Datasheet	LSS-120-03-L-DV-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ LSS
Package	Tube
Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Number of Positions	40
Pitch	0.025" (0.64mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	7mm, 8mm, 10mm
Height Above Board	0.209" (5.30mm)
Base Product Number	LSS-120
Standard Package	33
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1338206-LSS-120-03-L-DV-A
Ultra Librarian 3D Model	Ultra Librarian LSS-120-03-L-DV-A CAD Model

Alternative Products

Description

The Samtec Inc. Razor Beam™ LSS series is a rectangular connector array with edge type mezzanine (board to board) design.

Positions: 40
Pitch: 0.025 inches (0.64mm)
Features: Self-Mating, Non-Gendered, Hermaphroditic
Rows: Two
Contact Finish: Gold with a thickness of 10.0μin (0.25μm)
Package: Tube
Mated Stacking Heights: 7mm, 8mm, and 10mm
Height Above Board: 0.209 inches (5.30mm)
Standard Package: 33 connectors
