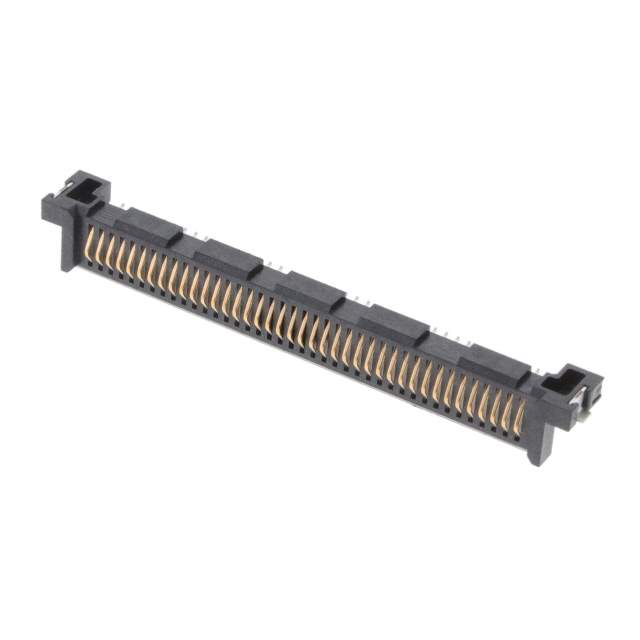

The SATAlink SAL1 series is a high-performance card edge connector designed for use in various applications. With a pitch of 0.039 inches (1.00mm), this connector features 40 positions and a black color. It also has board guide, pick and place, and solder retention features.

• Pitch: 0.039 inches (1.00mm)
• Positions: 40
• Color: Black
• Features: Board guide, pick and place, and solder retention
• Contact Type: Not specified
• Rows: One
• Termination: Solder
• Contact Finish: Gold
• Contact Finish Thickness: 30.0µin (0.76µm)
• Package Options: Tape & reel (TR) and cut tape (CT)
• Contact Material: Beryllium copper
• Insulation Material: Liquid crystal polymer (LCP)
• Connector Gender: Female
• Standard Package: 400
• Mounting Technology: Surface-mount device (SMD)
• Card Thickness Compatibility: 0.063 inches to 0.093 inches (1.60mm ~ 2.36mm)
• Readout: Single
• Operating Temperature: -55°C to 125°C
