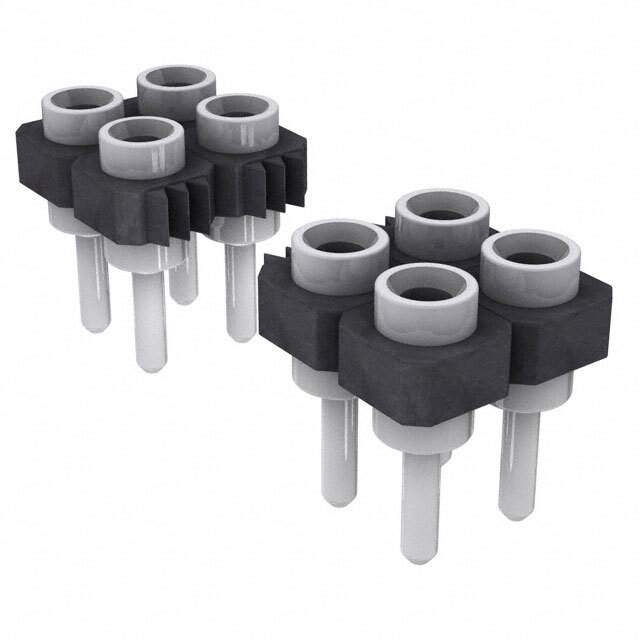

Same model may have multiple batches, images only for reference.

SDL-108-TT-10

Name: SDL-108-TT-10
Brand: Samtec Inc.
SKU: 1292876
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SDL-108-TT-10
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SDL-108-TT-10 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SDL
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	16
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.122" (3.10mm)
Contact Length - Post	0.108" (2.75mm)
Temperature Range - Operating	-55°C ~ 105°C
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SDL-108
Other Names	SAM1139-08
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292876-SDL-108-TT-10
Ultra Librarian 3D Model	Ultra Librarian SDL-108-TT-10 CAD Model

Alternative Products

Description

The SDL-108-TT-10 is a 16-position female socket receptacle connector designed by Samtec Inc. for board-to-board applications.

Series: SDL
Package: Tube
Pitch-Mating: 0.100" (2.54mm)
Row Spacing-Mating: 0.100" (2.54mm)
Temperature Range: -55°C to 105°C
REACH: Unaffected
