Same model may have multiple batches, images only for reference.

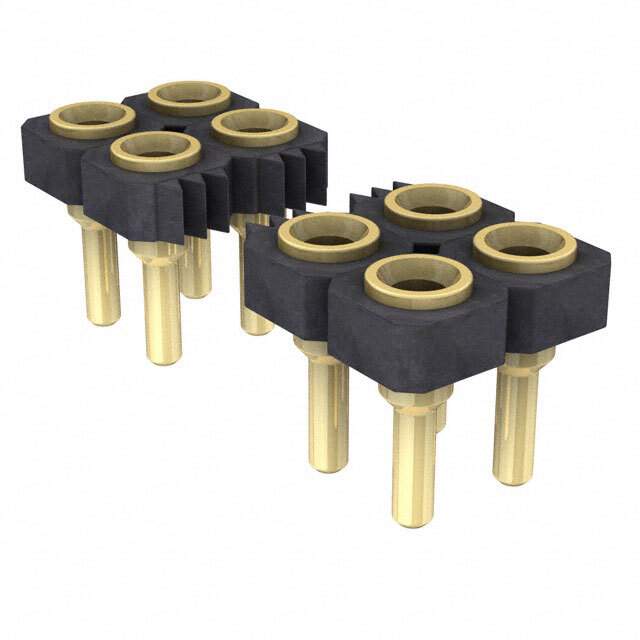

SDL-109-G-12 Real Image
Same model may have multiple batches, images only for reference.

SDL-109-G-12

Part No SDL-109-G-12
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-109-G-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 18
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Contact Length - Post 0.095" (2.41mm)
Temperature Range - Operating -55°C ~ 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-109
Other Names SAM1135-09
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292879-SDL-109-G-12
Ultra Librarian 3D Model Ultra Librarian SDL-109-G-12 CAD Model

Description

The SDL series features an 18-position female socket connector with push-pull fastening, designed for board-to-board connections.

  • Contact Material: Beryllium copper
  • Insulation Material: Liquid crystal polymer
  • Contact Finish: Gold (10.0μin)
  • Temperature Range: -55°C to 125°C
  • Package: Tube
  • Application: General-purpose electronic
