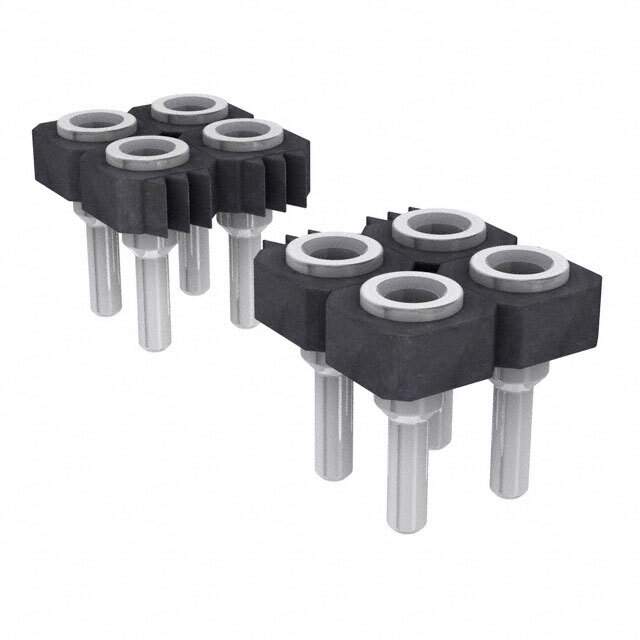

SDL-116-TT-12 Real Image
Same model may have multiple batches, images only for reference.

SDL-116-TT-12

Part No SDL-116-TT-12
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-116-TT-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 32
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Contact Length - Post 0.095" (2.41mm)
Temperature Range - Operating -55°C ~ 105°C
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-116
Other Names SAM1141-16
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292911-SDL-116-TT-12
Ultra Librarian 3D Model Ultra Librarian SDL-116-TT-12 CAD Model

Description

The SDL-116-TT-12 is a 32-position female socket receptacle connector from Samtec Inc.

  • Manufacturer: Samtec Inc.
  • Product Name: SDL-116-TT-12
  • Positions: 32-position
  • Connector Type: female socket receptacle
  • Type: board-to-board connector
  • Pitch: 0.100" (2.54mm)
  • Contact Shape: circular
  • Fastening Type: push-pull
  • Termination: soldering
  • Contact Finish (Mating and Post): tin
  • Mounting Type: through hole
  • Insulation Height: 0.095" (2.41mm)
  • Contact Length: 0.095" (2.41mm)
  • Color: black
  • Voltage Rating: not specified
  • Contact Material: beryllium copper
  • Material Flammability: not specified
  • Temperature Range: -55°C ~ 105°C
  • Series: SDL
  • Packaging: tube
