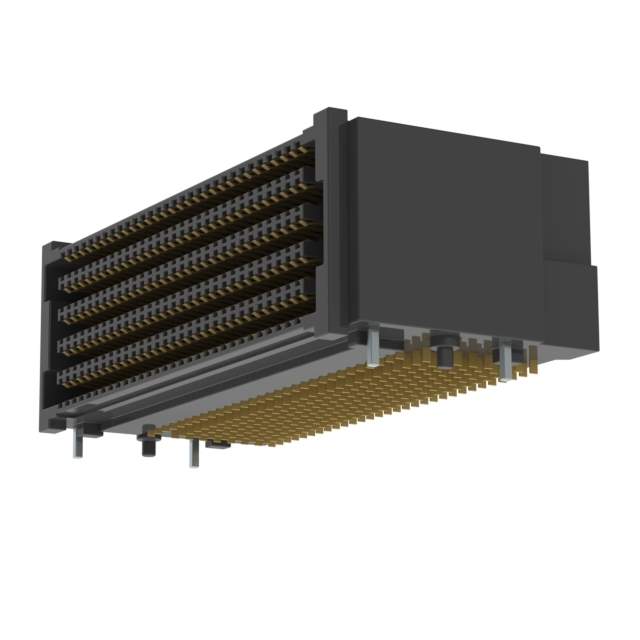

SEAF-30-01-S-10-2-RA-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-30-01-S-10-2-RA-TR

Part No SEAF-30-01-S-10-2-RA-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-30-01-S-10-2-RA-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 300
Pitch 0.050" (1.27mm)
Number of Rows 10
Mounting Type Surface Mount, Right Angle
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Height Above Board 0.611" (15.53mm)
Base Product Number SEAF-30
Standard Package 75
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293624-SEAF-30-01-S-10-2-RA-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-30-01-S-10-2-RA-TR CAD Model

Description

The SEARAY™ SEAF series connector from Samtec Inc. is a high-density array connector that features 300 positions with a pitch of 0.050" (1.27mm).

  • Connector Type: female
  • Number of Rows: ten
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mounting Type: surface mount
  • Height Above Board: 0.611" (15.53mm)
  • Temperature Range: -55°C to 125°C
  • Package: tape and reel
  • Application: mezzanine (board-to-board)
