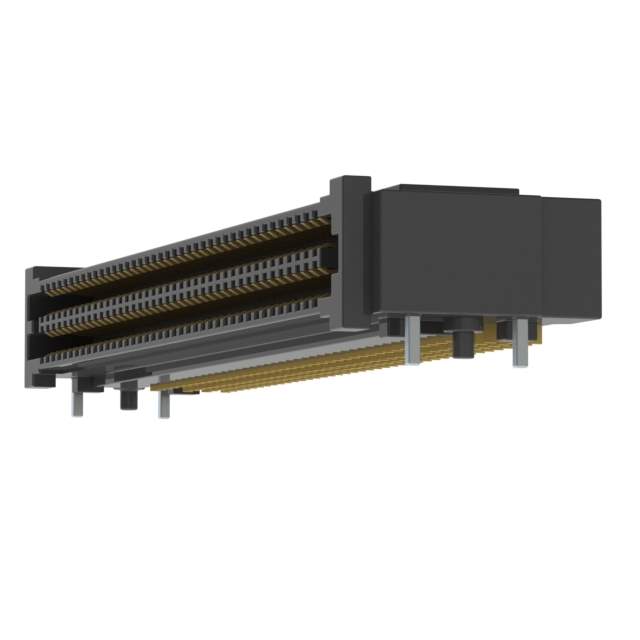

SEAF-40-01-L-04-1-RA-TR

Name: SEAF-40-01-L-04-1-RA-TR
Brand: Samtec Inc.
SKU: 1293730
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-40-01-L-04-1-RA-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-40-01-L-04-1-RA-TR Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	160
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting Type	Surface Mount, Right Angle
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.311" (7.90mm)
Base Product Number	SEAF-40
Standard Package	175
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293730-SEAF-40-01-L-04-1-RA-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-40-01-L-04-1-RA-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF series is a high-density array, female connector that has 160 positions with a pitch of 0.050" (1.27mm).

Board Guide: Yes
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Height Above Board: 0.311" (7.90mm)
Mounting Technology: Surface mount, right angle
Standard Package: 175
Packaging: Tape & reel (TR)
Manufacturer: Samtec Inc.
