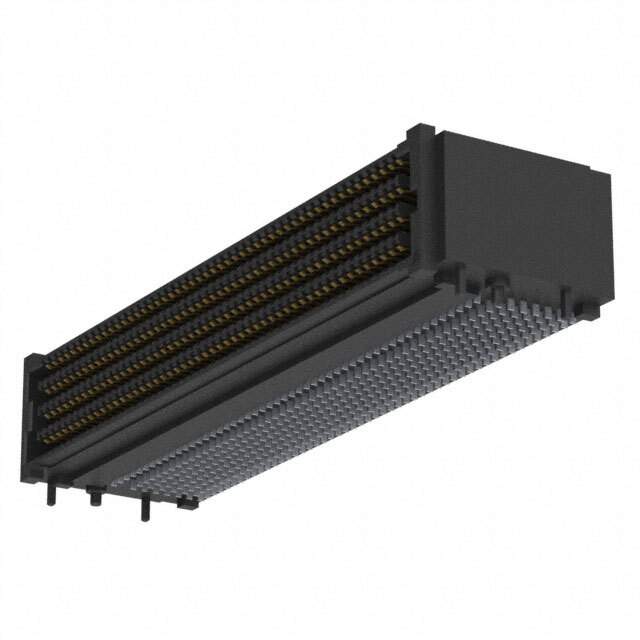

SEAF-50-01-S-08-2-RA-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-50-01-S-08-2-RA-TR

Part No SEAF-50-01-S-08-2-RA-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-50-01-S-08-2-RA-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 400
Pitch 0.050" (1.27mm)
Number of Rows 8
Mounting Type Surface Mount, Right Angle
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Height Above Board 0.511" (12.99mm)
Base Product Number SEAF-50
Standard Package 75
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293595-SEAF-50-01-S-08-2-RA-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-50-01-S-08-2-RA-TR CAD Model

Description

The Samtec Inc. SEARAY™ SEAF 1293595-SEAF-50-01-S-08-2-RA-TR is a high-density array, female connector that has 400 positions and an 8-row configuration.

  • Pitch: 0.050 inches (1.27mm)
  • Feature: board guide
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Packaging: tape and reel (TR)
  • Height Above Board: 0.511 inches (12.99mm)
  • Standard Package: 75
  • Mounting Type: surface mount, right-angle
  • Category: connectors, interconnects, rectangular connectors - arrays, edge type, mezzanine (board to board)
