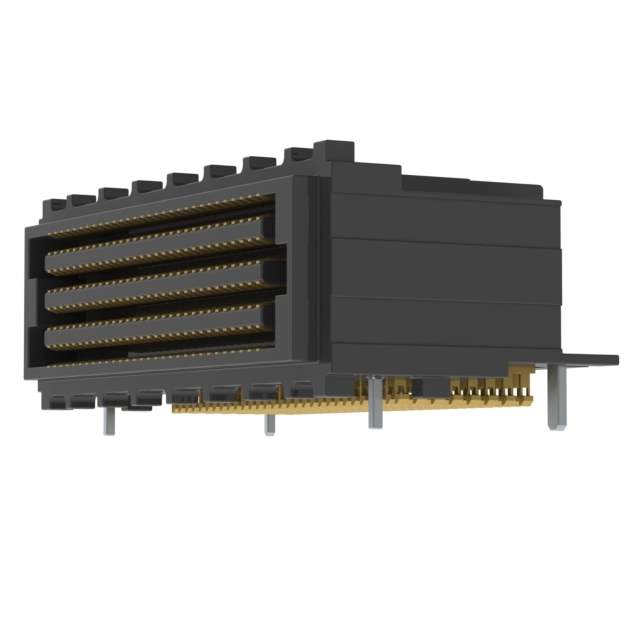

The SEAF8-30-1-S-08-2-RA is a high-density, high-speed edge card socket connector from Samtec's SEARAY™ family. This right-angle connector is designed for applications that require a robust and reliable connection in a compact form factor. The SEAF8 series offers excellent signal integrity and is suitable for demanding environments.

Applications:

• High-speed backplanes
• Edge card connections for PCBs
• Data center equipment
• Networking and telecommunications
• Medical equipment
• Industrial automation

Features:

• High-Density Design: Allows for a large number of signals in a small space.
• Right-Angle Configuration: Provides flexibility in board layout and design.
• Edge Card Socket: Designed specifically for mating with standard edge cards.
• SEARAY™ Contact System: Ensures high-reliability and signal integrity.
• Robust Construction: Withstands demanding environmental conditions.

Benefits:

• Increased Board Density: Enables more functionality in a smaller area.
• Reliable Connection: Ensures consistent performance in demanding environments.
• Design Flexibility: Right-angle configuration provides options for board layout.
• High-Speed Performance: Supports high data rates for modern applications.
• Durable Construction: Offers long-term reliability and performance.

Additional Details:

The SEAF8-30-1-S-08-2-RA features a 1.27 mm pitch and is constructed with high-quality materials to ensure durability and optimal performance. The gold-plated contacts minimize signal loss and provide a reliable connection. This connector is designed to meet the stringent requirements of high-speed digital systems.

Consult the official Samtec datasheet for detailed dimensions, electrical specifications, and mating information.
