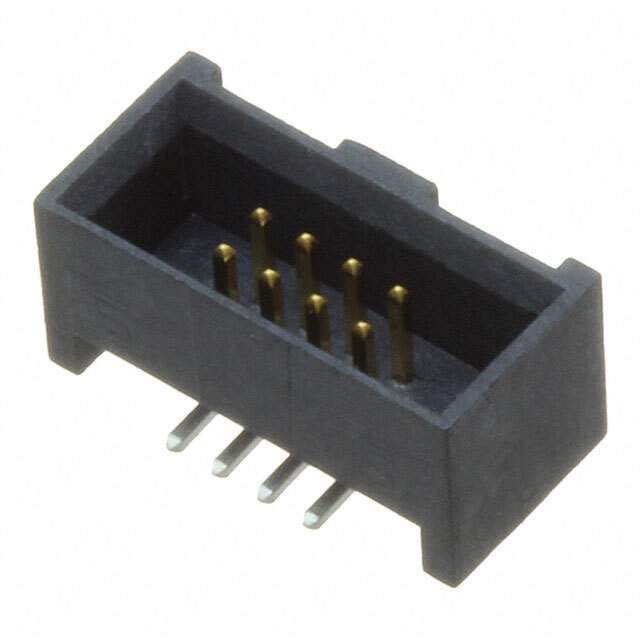

Same model may have multiple batches, images only for reference.

SHF-104-01-L-D-SM

Name: SHF-104-01-L-D-SM
Brand: Samtec Inc.
SKU: 1293118
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SHF-104-01-L-D-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SHF-104-01-L-D-SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	SHF
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.210" (5.33mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	SHF-104
Other Names	SHF-104-01-L-D-SM,SAM11768
Standard Package	50
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293118-SHF-104-01-L-D-SM
Ultra Librarian 3D Model	Ultra Librarian SHF-104-01-L-D-SM CAD Model

Alternative Products

Description

The Samtec SHF-104-01-L-D-SM is an 8-position rectangular connector that is widely used in board to cable/wire applications.

Pitch: 0.050" (1.27mm)
Connector Type: Header
Pins: Male pins
Contact Material: Phosphor bronze
Contact Finish: Gold
Mounting: Surface mount device (SMD)
Termination: Soldered
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Temperature Range: -55°C to 125°C
Applications: Industrial applications
