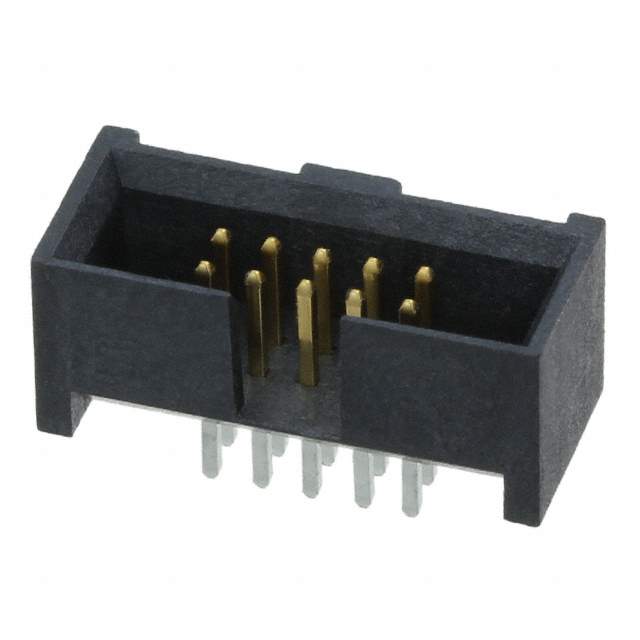

SHF-105-01-L-D-TH-TR Real Image
Same model may have multiple batches, images only for reference.

SHF-105-01-L-D-TH-TR

Part No SHF-105-01-L-D-TH-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SHF-105-01-L-D-TH-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series SHF
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.075" (1.91mm)
Insulation Height 0.210" (5.33mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number SHF-105
Other Names SAM14534DKR,SHF-105-01-L-D-TH-TR,SAM14534TR,SAM14534CT,SHF-105-01-L-D-TH-FR
Standard Package 450
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293169-SHF-105-01-L-D-TH-TR
Ultra Librarian 3D Model Ultra Librarian SHF-105-01-L-D-TH-TR CAD Model

Description

The Samtec Inc. 1293169-SHF-105-01-L-D-TH-TR is a rectangular connector header with male pins.

  • Series: SHF
  • Positions: 10
  • Keying Slot: Yes
  • Type: Board to Cable/Wire
  • Pitch Mating: 0.050" (1.27mm)
  • Shrouded: 4 Walls
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Voltage Rating: Not specified
  • Mated Stacking Heights: Not specified
  • Ingress Protection: Not specified
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Finish (Mating): Gold
  • Contact Finish Thickness (Mating): 10.0µin (0.25µm)
  • Contact Finish (Post): Tin
  • Insulation Color: Black
  • Mounting Type: Through-Hole
  • Row Spacing (Mating): 0.050" (1.27mm)
  • Contact Length (Post): 0.075" (1.91mm)
  • Insulation Height: 0.210" (5.33mm)
  • Contact Shape: Square
  • Temperature Range: -55°C to 125°C
  • Current Rating: 3A
  • MSL Level: 1 (Unlimited)
