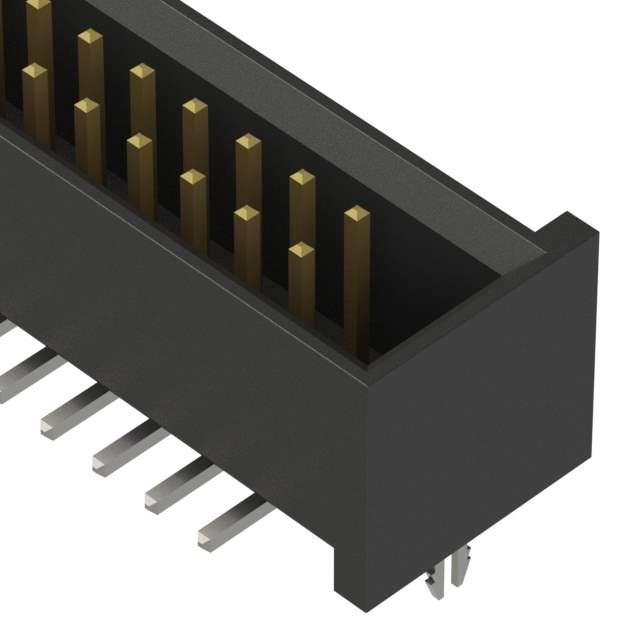

The SHF-112-01-L-D-SM-LC is a surface mount header from Samtec Inc., part of their SHF series. This header is designed for high-speed and high-density applications, providing reliable board-to-board connections. Its features include a fine pitch, surface mount termination, and a robust design capable of withstanding demanding environments. The gold-plated contacts ensure optimal signal integrity and long-term reliability.

Applications

• High-speed data transmission systems
• Telecommunications equipment
• Networking devices
• Medical imaging equipment
• Industrial automation

Features

• Fine pitch design for high density
• Surface mount termination for automated assembly
• Gold-plated contacts for optimal signal integrity
• High-temperature insulator material
• Robust construction for demanding environments

Benefits

• Enables high-speed data transmission
• Facilitates automated assembly processes
• Provides reliable and stable connections
• Ensures long-term performance and durability
• Reduces board space requirements

Additional Details

The SHF-112-01-L-D-SM-LC header is designed to meet the stringent requirements of high-speed applications. The fine pitch allows for increased density, reducing the overall size of the board. The surface mount termination simplifies assembly and improves reliability. The gold-plated contacts provide excellent conductivity and corrosion resistance, ensuring optimal signal integrity. The high-temperature insulator material is compatible with reflow soldering processes.

This header is part of Samtec's extensive line of high-performance interconnect solutions. It is designed to provide a reliable and cost-effective solution for a wide range of applications. The part number indicates a specific configuration, including the number of contacts, row arrangement, and termination style. It also adheres to RoHS compliance standards.
