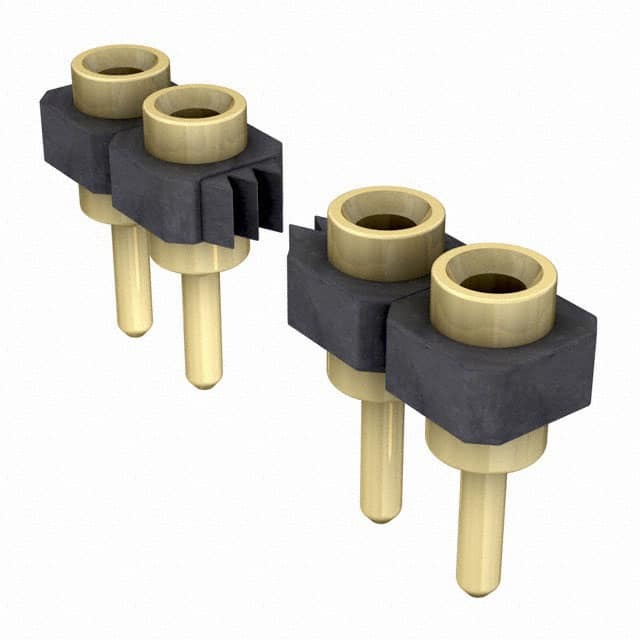

Same model may have multiple batches, images only for reference.

SL-120-G-10

Name: SL-120-G-10
Brand: Samtec Inc.
SKU: 1292722
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SL-120-G-10
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SL-120-G-10 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SL
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.122" (3.10mm)
Contact Length - Post	0.108" (2.75mm)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SL-120
Other Names	SAM1102-20
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292722-SL-120-G-10
Ultra Librarian 3D Model	Ultra Librarian SL-120-G-10 CAD Model

Alternative Products

Description

This is a rectangular connector with a receptacle type connector.

Contacts: 20 female socket
Contact Material: beryllium copper
Contact Plating: gold plated
Contact Finish Thickness for Mating: 10.0µin (0.25µm)
Contact Finish Thickness for Post: not specified
Insulation Material: black liquid crystal polymer (LCP)
Insulation Height: 0.122 inches (3.10mm)
Pitch: 0.100 inches (2.54mm)
Contact Shape: circular
Mounting: through-hole
Fastening Type: push-pull
Temperature Range: -55°C to 125°C
