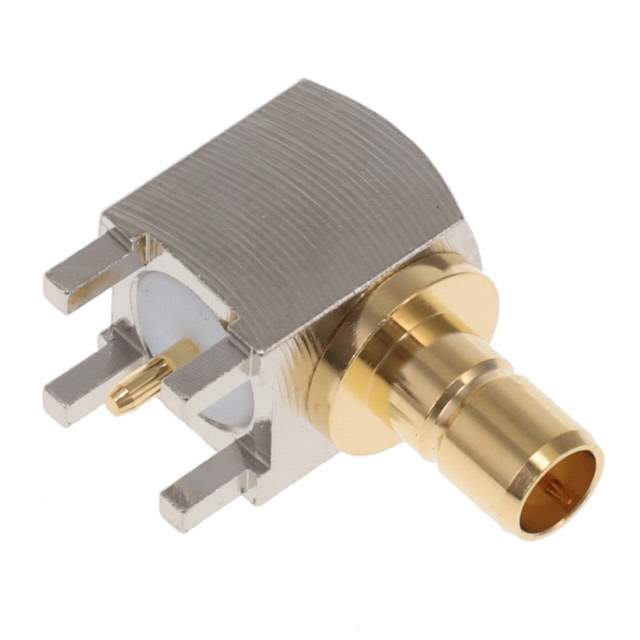

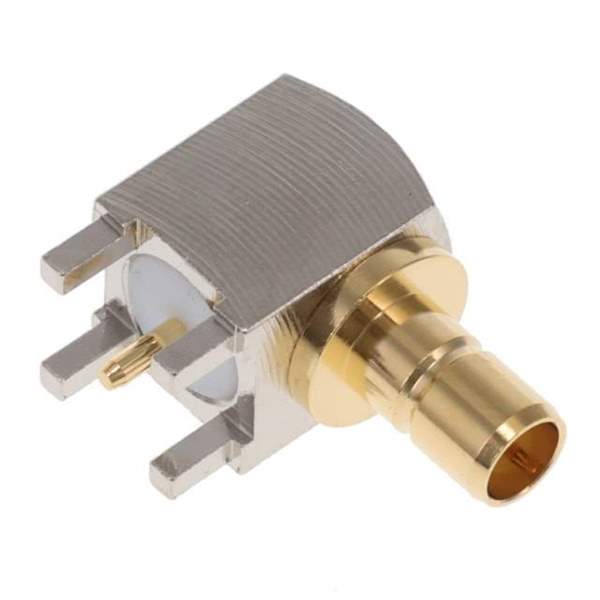

SMB7H-J-P-HN-RA-TH1 Real Image
Same model may have multiple batches, images only for reference.

SMB7H-J-P-HN-RA-TH1

Part No SMB7H-J-P-HN-RA-TH1
Manufacturer Samtec Inc.
Catalog Coaxial Connectors (RF)
Datasheet
SMB7H-J-P-HN-RA-TH1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Samtec Inc.
Series TRUE75™ SMB7H
Package Bulk
Connector Style SMB
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 75Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Snap-On
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 335 V
Base Product Number SMB7H-J
Other Names SAM11806,SMB7H-J-P-HN-RA-TH1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1294129-SMB7H-J-P-HN-RA-TH1
Ultra Librarian 3D Model Ultra Librarian SMB7H-J-P-HN-RA-TH1 CAD Model

Description

The TRUE75™ SMB7H series connector is a male pin jack connector used for coaxial applications.

  • Connector Type: Male pin jack
  • Application: Coaxial
  • Fastening Type: Snap-on
  • Mounting: Through-hole
  • Mounting Type: Right angle
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Body Material: Brass
  • Body Finish: Nickel
  • Impedance: 75Ohm
  • Voltage Rating: 335V
  • Frequency Range: Up to 4 GHz
  • Temperature Range: -65°C to 165°C
  • ECCN: EAR99 compliant
