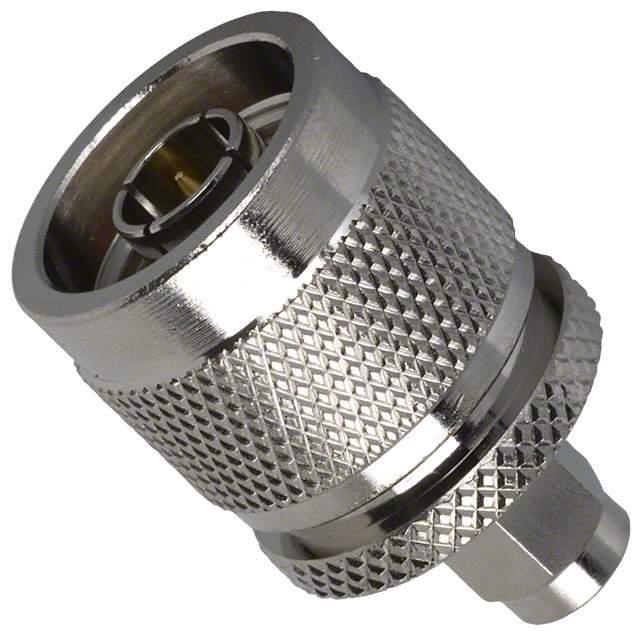

242114 Real Image1 242114 Real Image2
Same model may have multiple batches, images only for reference.
242114 Real Image1 242114 Real Image2
242114 Real Image1 242114 Real Image2
Same model may have multiple batches, images only for reference.

242114

Part No 242114
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN ADAPT SMA PLUG TO N PLUG / Adapter Coaxial Connector SMA Plug, Male Pin To N Plug, Male Pin 50Ohm
Datasheet
242114 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Adapters
Mfr Amphenol-RF Division
Series -
Package Bag
Adapter Type Plug to Plug
Conversion Type Between Series
Adapter Series SMA to N
Center Gender Male to Male
Convert From (Adapter End) SMA Plug, Male Pin
Convert To (Adapter End) N Plug, Male Pin
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Fastening Type Threaded, Threaded
Frequency - Max 11 GHz
Ingress Protection -
Center Contact Plating Gold
Features -
Includes -
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles -
Insertion Loss -
Temperature Range - Operating -65°C ~ 165°C
Base Product Number 2421
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1380693-242114
Ultra Librarian 3D Model Ultra Librarian 242114 CAD Model

Description

The 1380693-242114 is a Plug to Plug Adapter from Amphenol-RF Division. It is a coaxial connector adapter that allows for conversion between SMA Plug with Male Pin to N Plug with Male Pin.

  • Connector Type: Adapter
  • Convert From (Adapter End): SMA Plug, Male Pin
  • Convert To (Adapter End): N Plug, Male Pin
  • Fastening Type: Threaded
  • Frequency - Max: 11 GHz
  • Impedance: 50Ohm
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Style: Straight
  • Mounting Type: Free Hanging (In-Line)
  • Operating Temperature: -65°C to 165°C
  • Manufacturer: Amphenol-RF Division
