Same model may have multiple batches, images only for reference.

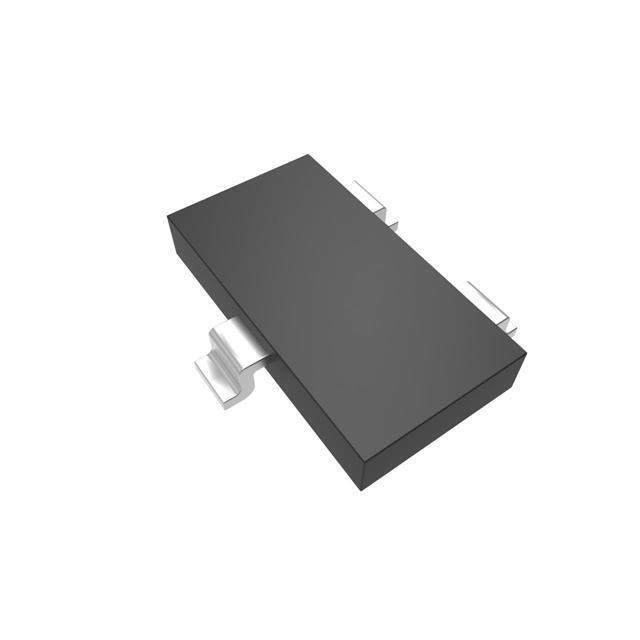

BAT54CWT-TP Real Image
Same model may have multiple batches, images only for reference.

BAT54CWT-TP

Part No BAT54CWT-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT323
Datasheet
BAT54CWT-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 29 Weeks
Features Diode Array 1 Pair Common Cathode Schottky 30 V 200mA (DC) Surface Mount SC-70, SOT-323
Manufacturer Micro Commercial Co
Package Reel - TR
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package SC-70, SOT-323
Case / Package SOT-323
Family Name BAT54
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number BAT54CWT-TPCT, Q7419760, BAT54CWT-TPDKR, BAT54CWT-TPTR, BAT54CWTTP
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863489-BAT54CWT-TP
Ultra Librarian 3D Model Ultra Librarian BAT54CWT-TP CAD Model

Description

The Micro Commercial Co BAT54CWT-TP is a diode array with 1 pair common cathode Schottky in a surface mount SC-70, SOT-323 package.

  • Supply and Demand Status: Limited
  • Quantity per Package: 3000
  • Estimated Production Lead Time: 29 weeks
  • REACH Status: Unaffected
