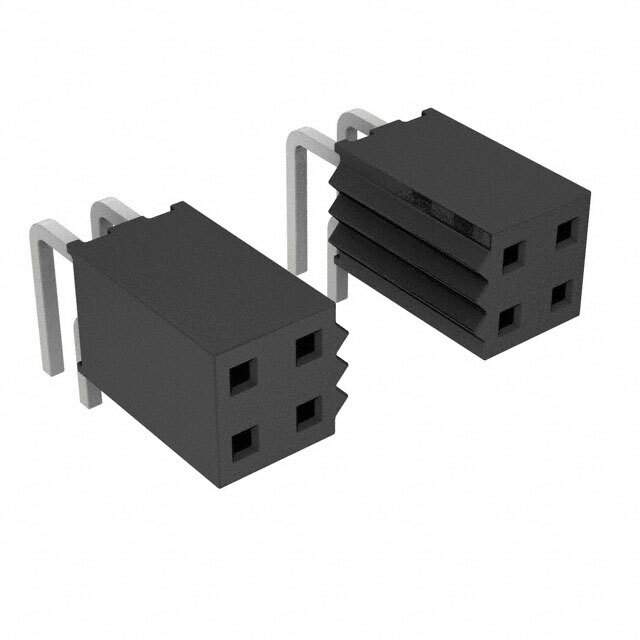

SQT-109-01-L-D-RA

Name: SQT-109-01-L-D-RA
Brand: Samtec Inc.
SKU: 1292460
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SQT-109-01-L-D-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SQT-109-01-L-D-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQT
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	18
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.157" (4.00mm)
Contact Length - Post	0.090" (2.29mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	5.1A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQT-109
Other Names	SAM1246-09
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292460-SQT-109-01-L-D-RA
Ultra Librarian 3D Model	Ultra Librarian SQT-109-01-L-D-RA CAD Model

Alternative Products

Description

The SQT-109-01-L-D-RA is a rectangular connector header, receptacle, female socket component manufactured by Samtec Inc.

Series: SQT
Positions Loaded: 18
Rows: Two
Contact Type: Forked
Contact Finish (Mating): Gold
Contact Thickness (Mating): 10.0µin (0.25µm)
Contact Finish (Post): Tin
Fastening Type: Push-Pull
Termination: Solder
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Mounting Type: Through-Hole, Right-Angle
Row Spacing: 0.079" (2.00mm)
HTSUS: 8536.69.4040
