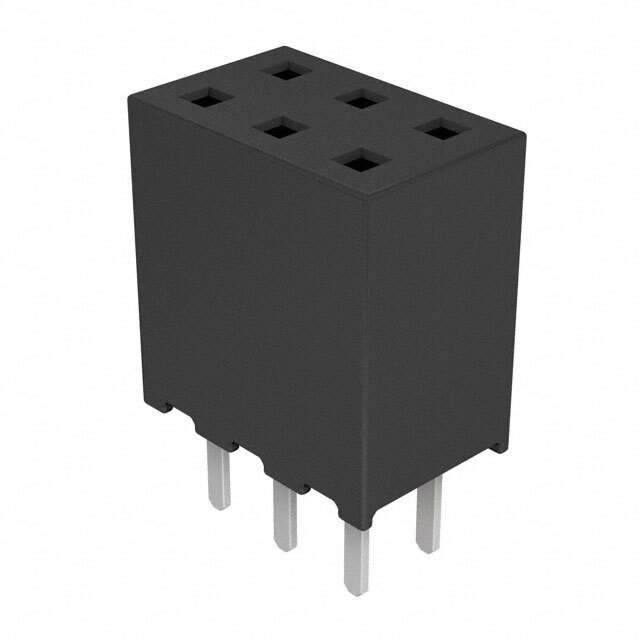

SQW-103-01-L-D

Name: SQW-103-01-L-D
Brand: Samtec Inc.
SKU: 1292300
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SQW-103-01-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SQW-103-01-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQW
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.250" (6.35mm)
Contact Length - Post	0.090" (2.29mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQW-103
Other Names	SAM1249-03
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292300-SQW-103-01-L-D
Ultra Librarian 3D Model	Ultra Librarian SQW-103-01-L-D CAD Model

Alternative Products

Description

The SQW-103-01-L-D is a 6-position, board-to-board or cable interconnect from Samtec Inc.

Fastening Type: Push-Pull
Mounting Style: Through-Hole
Pitch-Mating: 0.079” (2.00mm)
Row Spacing: 0.079” (2.00mm)
Voltage Rating: -
Current Rating: 3.8A per contact
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Contact Finish-Mating: Gold
Contact Finish-Post: Tin
Component Status: Active
Popularity: Medium
MSL Level: 1 (Unlimited)
REACH Status: REACH Unaffected
