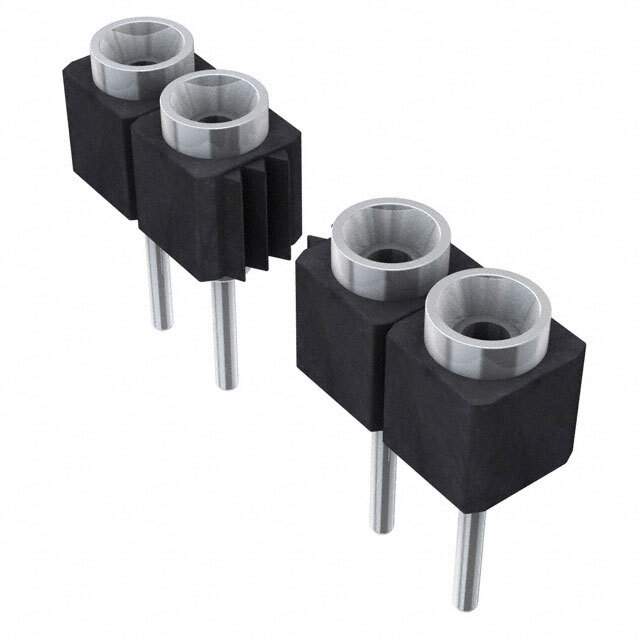

The SS-108-TT-2-N electronic component is an 8 position connector manufactured by Samtec Inc.

• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions: All positions loaded
• Rows: One
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Material: Beryllium Copper
• Contact Finish (Mating): Tin
• Contact Finish (Post): Tin
• Insulation Material: Polybutylene Terephthalate (PBT) and Glass Filled
• Insulation Color: Black
• Mounting: Through Hole
• Pitch-Mating: 0.100" (2.54mm)
• Contact Length (Post): 0.125" (3.18mm)
• Insulation Height: 0.100" (2.54mm)
• Contact Shape: Circular
• Temperature Range: -55°C ~ 125°C
• Voltage Rating: None
• Material Flammability Rating: None
