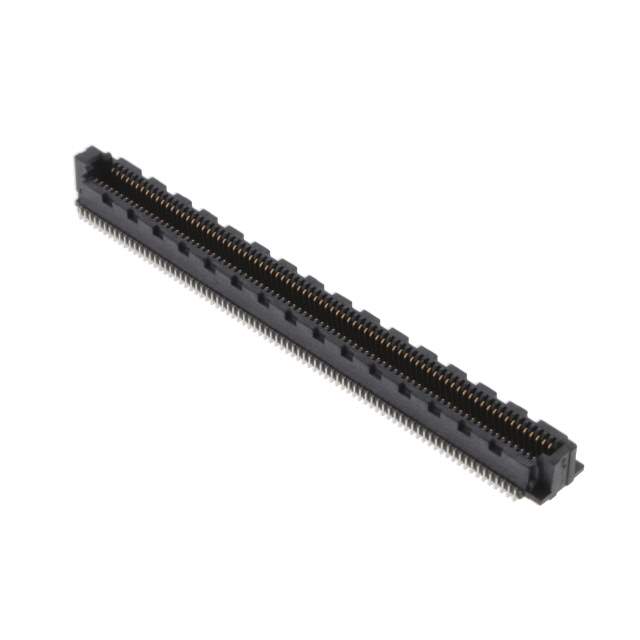

SS5-80-3.00-L-D-K-TR Real Image
Same model may have multiple batches, images only for reference.

SS5-80-3.00-L-D-K-TR

Part No SS5-80-3.00-L-D-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SS5-80-3.00-L-D-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series Razor Beam™ SS5
Package Tape & Reel
Connector Type Socket, Outer Shroud Contacts
Number of Positions 160
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 4mm, 4.5mm, 5.5mm
Height Above Board 0.112" (2.85mm)
Base Product Number SS5-80
Other Names SAM14974CT,SAM14974DKR,SAM14974TR
Standard Package 950
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293969-SS5-80-3.00-L-D-K-TR
Ultra Librarian 3D Model Ultra Librarian SS5-80-3.00-L-D-K-TR CAD Model

Description

The Razor Beam™ SS5 series from Samtec Inc. offers a high-performance solution for board-to-board interconnect applications.

  • Pitch: 0.020 inches
  • Positions: 160
  • Rows: Two
  • Contact Type: Outer shroud contacts
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin
  • Features: Pick and place
  • Packaging: Tape and reel
  • Mated Stacking Heights: 4mm, 4.5mm, and 5.5mm
  • Height Above the Board: 0.112 inches
  • Mounting Type: Surface mountable
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Package Quantity: 950 connectors
