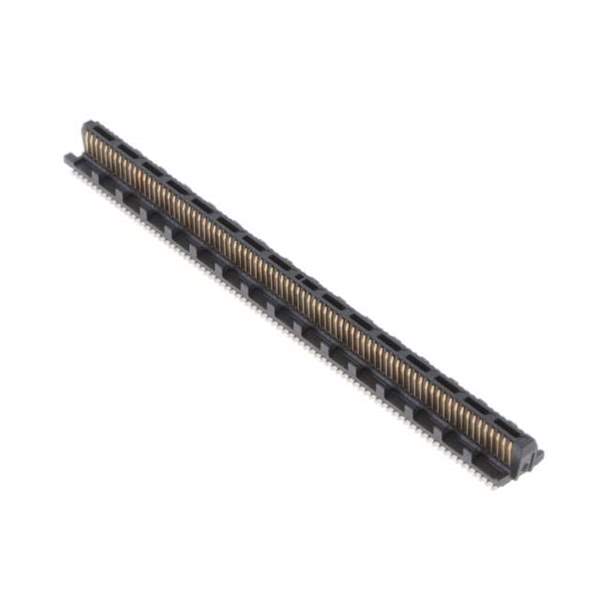

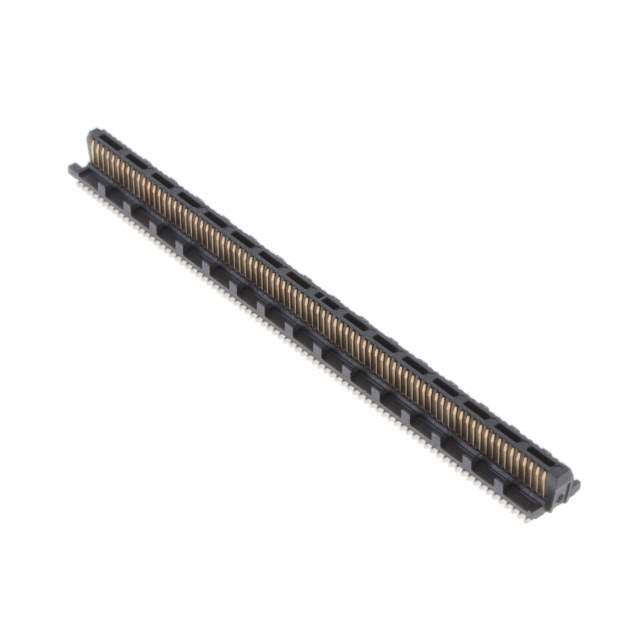

ST5-80-1.00-L-D-P-TR

Name: ST5-80-1.00-L-D-P-TR
Brand: Samtec Inc.
SKU: 1293959
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ST5-80-1.00-L-D-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	ST5-80-1.00-L-D-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ ST5
Package	Tape & Reel
Connector Type	Header, Center Strip Contacts
Number of Positions	160
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	4mm, 4.5mm
Height Above Board	0.121" (3.07mm)
Base Product Number	ST5-80
Other Names	ST5-80-1.00-L-D-P-TR,SAM15468TR,SAM15468CT,ST5-80-1.00-L-D-P-FR,SAM15468DKR
Standard Package	925
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293959-ST5-80-1.00-L-D-P-TR
Ultra Librarian 3D Model	Ultra Librarian ST5-80-1.00-L-D-P-TR CAD Model

Alternative Products

Description

The Razor Beam ST5 series center strip contacts header connector is a high-quality board-to-board connector with two rows of 160 positions.

Positions: 160
Rows: Two
Pitch: 0.020 inches
Contact Finish: Gold plating
Finish Thickness: 10.0µin
Packaging: Tape and reel
Standard Package: 925
ECCN: EAR99 compliant
MSL Level: 1
