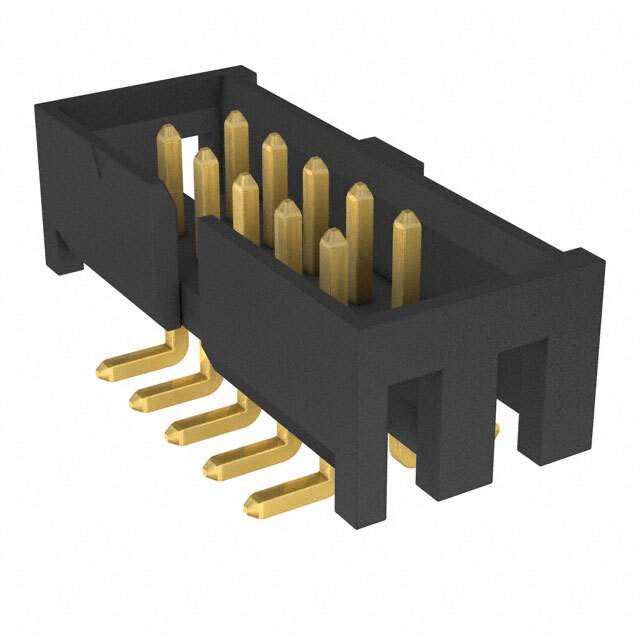

STMM-105-02-G-D-SM Real Image
Same model may have multiple batches, images only for reference.

STMM-105-02-G-D-SM

Part No STMM-105-02-G-D-SM
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
STMM-105-02-G-D-SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, STMM
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.190" (4.83mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number STMM-105
Other Names STMM-105-02-G-D-SM,SAM12921
Standard Package 35
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293203-STMM-105-02-G-D-SM
Ultra Librarian 3D Model Ultra Librarian STMM-105-02-G-D-SM CAD Model

Description

The STMM-105-02-G-D-SM is a male pin header connector from Samtec's Flex Stack series.

  • Positions Loaded: 10
  • Rows: 2
  • Series: Flex Stack
  • Keying: Keying Slot
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Application: Board to cable/wire
  • Mating Pitch: 0.079 inches (2.00mm)
  • Contact Finish: Gold with 20.0µin (0.51µm) thickness for mating and 3.00µin (0.076µm) thickness for post
  • Shrouding: Shrouded with 4 walls
  • Row Spacing: 0.079 inches (2.00mm)
  • Contact Length (Mating): 0.120 inches (3.05mm)
  • Insulation Height: 0.190 inches (4.83mm)
  • Temperature Range: -55°C to 125°C
  • Current Rating: 3A
