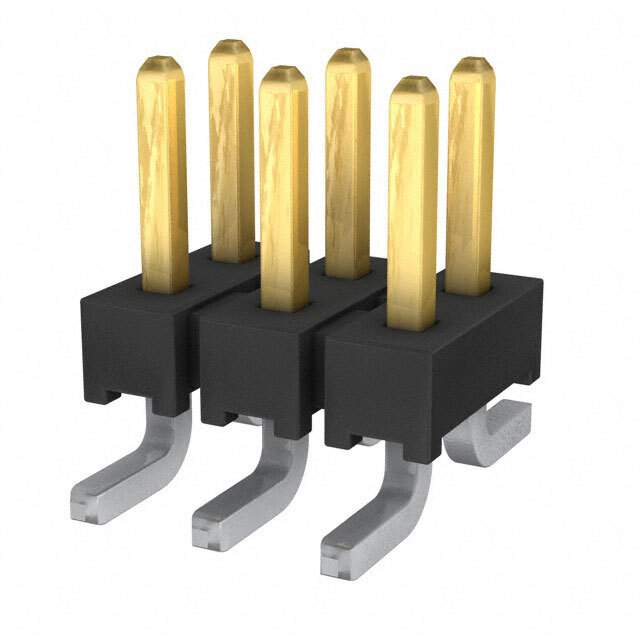

Same model may have multiple batches, images only for reference.

TMM-103-01-F-D-SM

Name: TMM-103-01-F-D-SM
Brand: Samtec Inc.
SKU: 1332816
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMM-103-01-F-D-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 6POS 2MM / Connector Header Surface Mount 6 position 0.079" (2.00mm)
Datasheet	TMM-103-01-F-D-SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Samtec Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.126" (3.20mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Base Product Number	TMM-103
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	TMM-103-01-F-D-SM-ND,SAM12142
Standard Package	98
Win Source Part Number	1332816-TMM-103-01-F-D-SM
Ultra Librarian 3D Model	Ultra Librarian TMM-103-01-F-D-SM CAD Model

Alternative Products

Description

The Samtec Inc. TMM-103-01-F-D-SM is a male pin header connector with a 2-row, 6-position configuration.

Manufacturer: Samtec Inc.
Connector Type: Male pin header
Rows: 2
Positions: 6
Application: Board-to-board or board-to-cable
Pitch: 0.079 inches (2.00mm)
Contact Material: Phosphor bronze
Contact Finish: Gold with a thickness of 3.00µin (0.076µm)
Termination: Solder
Fastening Type: Push-pull
Insulation Material: Liquid crystal polymer (LCP)
Feature: Unshrouded
Operating Temperature: -55°C to 125°C
Current Rating: 3.2A per contact
Package: Tube
Flammability Rating: UL94 V-0
