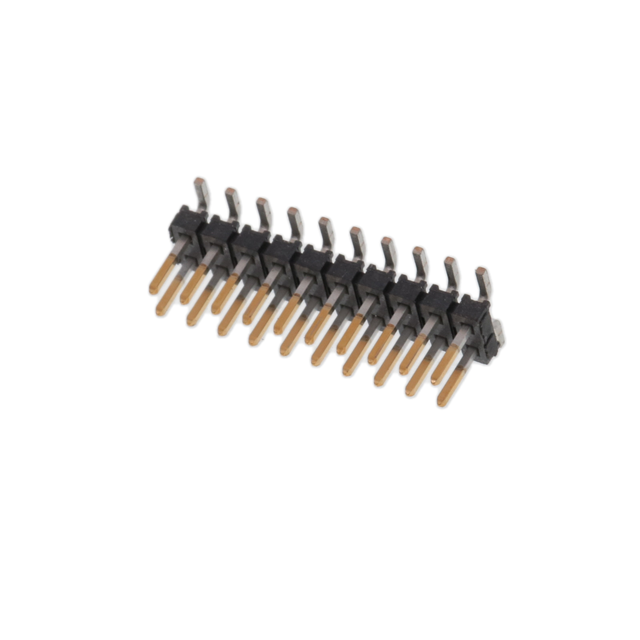

Same model may have multiple batches, images only for reference.

TMM-110-06-L-D-SM-P-TR

Name: TMM-110-06-L-D-SM-P-TR
Brand: Samtec Inc.
SKU: 1332916
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMM-110-06-L-D-SM-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 2MM / Connector Header Surface Mount 20 position 0.079" (2.00mm)
Datasheet	TMM-110-06-L-D-SM-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Samtec Inc.
Packaging	Reel - TR
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.168" (4.27mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Base Product Number	TMM-110
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM14763DKR,TMM-110-06-L-D-SM-P-TR-ND,SAM14763TR,SAM14763CT
Standard Package	300
Win Source Part Number	1332916-TMM-110-06-L-D-SM-P-TR
Ultra Librarian 3D Model	Ultra Librarian TMM-110-06-L-D-SM-P-TR CAD Model

Alternative Products

Description

The Samtec Inc. 1332916-TMM-110-06-L-D-SM-P-TR header connector is a male pin type connector with a pitch of 0.079 inches (2.00mm) and a contact finish of gold.

Positions: 20 positions
Loaded: Loaded with all positions
Mounting: Designed to be surface mounted
Fastening Type: Push-pull fastening type
Contact Material: Phosphor bronze
Insulation Material: Liquid crystal polymer (LCP)
Current Rating: 3.2A per contact
Operating Temperature: -55°C to 125°C
Flammability Rating: UL94 V-0 flammability rated
Voltage Rating: -.
