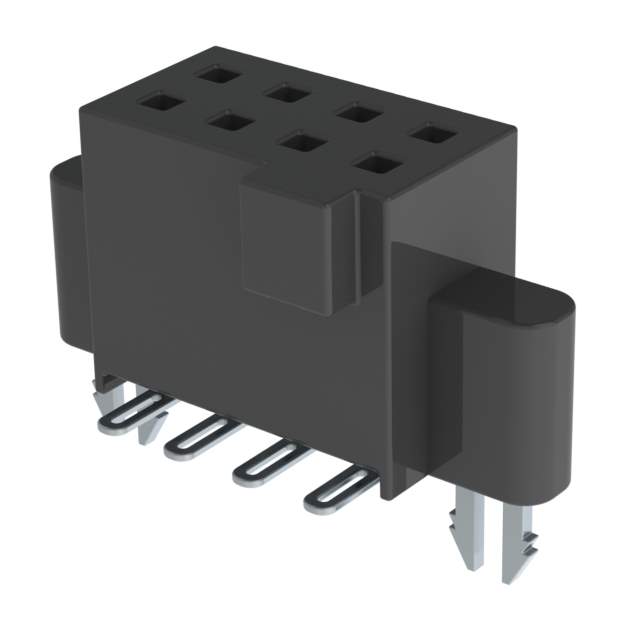

Name: SFM-104-02-S-D-LC-K-TR
Brand: Samtec Inc.
SKU: 1287181
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tape & Reel (TR)
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.185" (4.70mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Features	Board Lock, Pick and Place
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-104
Standard Package	125
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287181-SFM-104-02-S-D-LC-K-TR
Ultra Librarian 3D Model	Ultra Librarian SFM-104-02-S-D-LC-K-TR CAD Model

Description

The Tiger Eye™ SFM series SFM-104-02-S-D-LC-K-TR is a rectangular connector receptacle with 2 rows and 8 positions.

Rows: 2
Positions: 8
Density: High-density
Pitch: 1.27mm
Applications: Board-to-board or cable connections
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Contacts Material: Beryllium copper
Finish (Mating): Gold
Finish (Post): Tin
Voltage Rating: 250VAC
Current Rating: 3.2A per contact
Fastening Type: Push-pull
Termination: Solder
Features: Board lock and pick and place
Packaging: Tape and reel
Mated Stacking Height: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, and 11.76mm
Material Flammability Rating: UL94 V-0
Temperature Range: -55°C to 125°C
