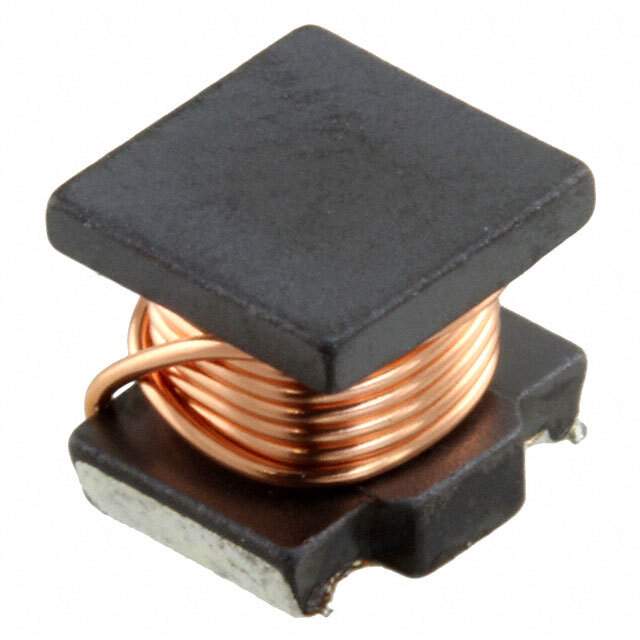

LQH55DN220M03L

Part No LQH55DN220M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor Power Chip Unshielded Wirewound 22uH 20% 1MHz Ferrite 1.2A 0.266Ohm DCR 2220 T/R / FIXED IND 22UH 1.2A 190 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 1.2A
DC Resistance (DCR) 266 mOhm Max
Frequency - Self Resonant 15MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 019989-LQH55DN220M03L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name LQH55DN_03
Introduction Date February 23, 2006
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LQH55DN220M03L CAD Model

Description

The Murata Electronics North America LQH55DN220M03L is a wirewound inductor suitable for use in a variety of applications, including power supplies, DC-DC converters, and noise filters. It features an inductance of 22 μH, a current rating of 1.2 A, and a DC resistance of 266 mOhm Max. The device operates over a wide temperature range of -40°C to 85°C and is compliant with halogen-free standards. The LQH55DN220M03L is a reliable and efficient electronic component that can help enhance the performance of your electronic devices.
