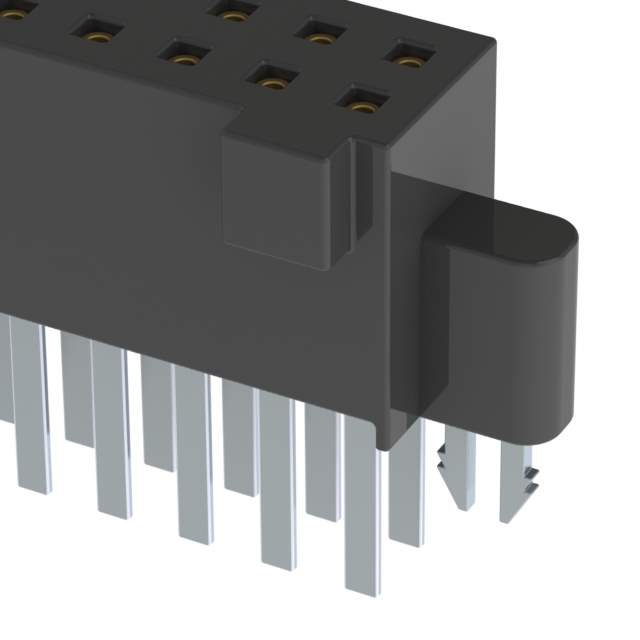

Name: SFM-115-T1-S-D-LC-K
Brand: Samtec Inc.
SKU: 1287656
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Features	Board Lock, Pick and Place
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SFM-115
Standard Package	1
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287656-SFM-115-T1-S-D-LC-K
Ultra Librarian 3D Model	Ultra Librarian SFM-115-T1-S-D-LC-K CAD Model

Description

The Tiger Eye™ SFM series from Samtec Inc. offers a 30-position female socket connector with push-pull fastening type and solder termination.

Positions: 30
Fastening Type: Push-Pull
Termination: Solder
Voltage Rating: 250VAC
Current Rating: 3.2A per contact
Contact Material: Phosphor Bronze
Contact Finish Mating: Gold
Contact Finish Thickness Mating: 30.0µin (0.76µm)
Contact Finish Post: Tin
Application: Board-to-Board or Cable
Pitch Mating: 0.050" (1.27mm)
Flammability Rating: UL94 V-0
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Mounting: Through Hole
Package: Bulk
Contact Shape: Square
Temperature Range: -55°C to 125°C
