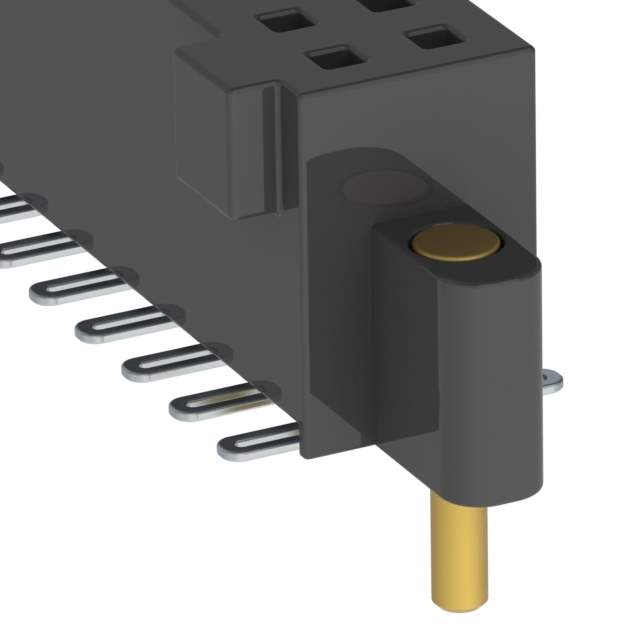

SFM-150-02-L-D-SN2 Real Image
Same model may have multiple batches, images only for reference.

SFM-150-02-L-D-SN2

Part No SFM-150-02-L-D-SN2
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFM-150-02-L-D-SN2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFM
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 100
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Features Solder Retention
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFM-150
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1287780-SFM-150-02-L-D-SN2
Ultra Librarian 3D Model Ultra Librarian SFM-150-02-L-D-SN2 CAD Model

Description

The Tiger Eye SFM Receptacle is a rectangular connector designed for headers and female sockets.

  • Positions: 100
  • Positions Loaded: All
  • Connector Type: Receptacle
  • Contact Type: Female socket
  • Termination: Solder
  • Fastening Type: Push-pull
  • Package: Bulk
  • Standard Package: 500
  • Voltage Rating: 250VAC
  • Contact Material: Beryllium copper
  • Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, and 11.76mm
  • Insulation Material: Liquid crystal polymer (LCP)
  • Insulation Color: Black
  • Row Spacing for Mating: 0.050 inches or 1.27 millimeters
  • Contact Finish for Mating: Gold
  • Contact Finish Thickness for Mating: 10.0µin or 0.25µm
  • Contact Finish for Post: Tin
  • Insulation Height: 0.185 inches or 4.70 millimeters
  • Contact Shape: Square
  • Temperature Range for Operating: -55°C to 125°C
  • Current Rating: 3.2A per contact
  • HTSUS: 8536.69.4040
  • Manufacturer: Samtec Inc.
