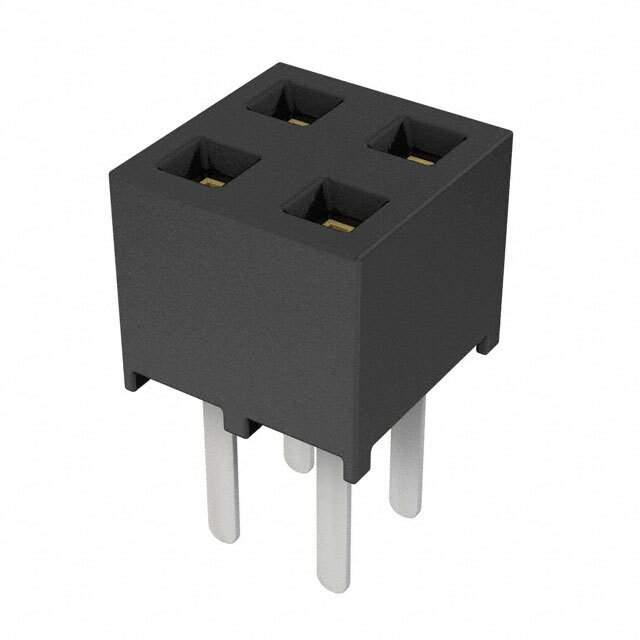

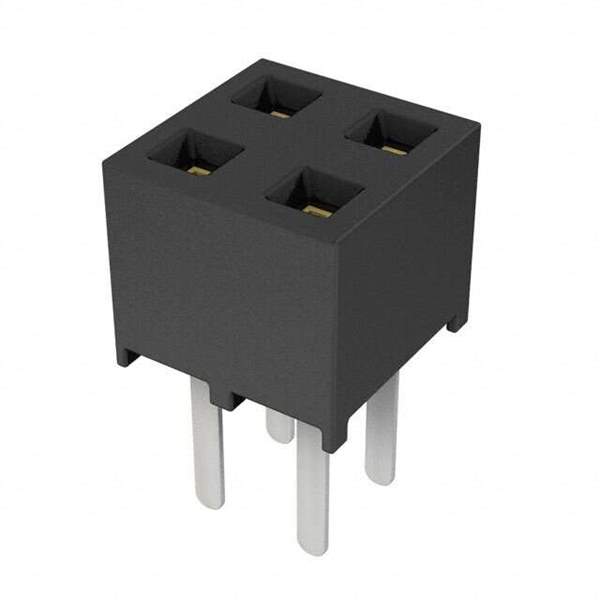

The Samtec Inc. 1285376-SMM-102-01-S-D is a rectangular connector that falls under the 'Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets' category.

• Series: Tiger Eye™ SMM
• Base Product Number: SMM-102
• Number of Positions: 4
• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions Loaded: All
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Bulk
• Contact Material: Beryllium Copper
• Voltage Rating: 350VAC
• Insulation Material: Liquid Crystal Polymer (LCP)
• Style: Board to Board or Cable
• Pitch-Mating: 0.079" (2.00mm)
• Contact Finish-Mating: Gold
• Contact Finish Thickness-Mating: 30.0µin (0.76µm)
• Contact Finish-Post: Tin
• Insulation Color: Black
• Mounting Type: Through Hole
• Row Spacing-Mating: 0.079" (2.00mm)
• Insulation Height: 0.140" (3.56mm)
• Contact Shape: Square
• Temperature Range: -55°C to 125°C
• ECCN: EAR99
• MSL Level: 1 (Unlimited)
• Current Rating (amps): 3.2A per contact
• REACH status: REACH unaffected
• HTSUS: 8536.69.4040
• Other names: SAM15787 and SMM-102-01-S-D
