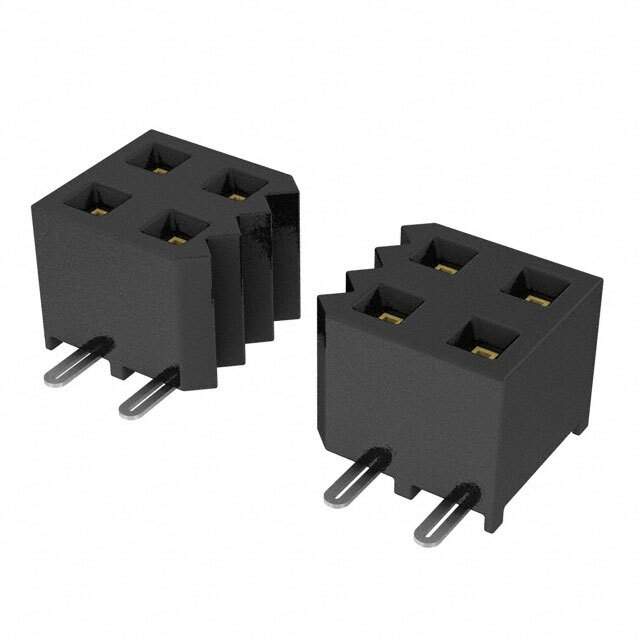

Same model may have multiple batches, images only for reference.

SMM-106-02-S-D-P-TR

Name: SMM-106-02-S-D-P-TR
Brand: Samtec Inc.
SKU: 1285371
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMM-106-02-S-D-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SMM-106-02-S-D-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SMM
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	12
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.140" (3.56mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating (Amps)	3.2A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SMM-106
Other Names	612-SMM-106-02-S-D-P-TRCT,612-SMM-106-02-S-D-P-TR,612-SMM-106-02-S-D-P-TRDKR,SMM-106-02-S-D-P-TR
Standard Package	650
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285371-SMM-106-02-S-D-P-TR
Ultra Librarian 3D Model	Ultra Librarian SMM-106-02-S-D-P-TR CAD Model

Alternative Products

Description

The Samtec Inc. Tiger Eye™ SMM series rectangular connector has 12 positions and a pitch mating of 0.079" (2.00mm).

Connector Series: Tiger Eye™ SMM
Number of Positions: 12
Pitch Mating: 0.079" (2.00mm)
Mounting Style: SMD
Style: Board to Board or Cable
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Fastening Type: Push-Pull
Termination: Solder
Insulation Color: Black
Contact Shape: Square
Temperature Range: -55°C to 125°C
Current Rating: 3.2A per contact
