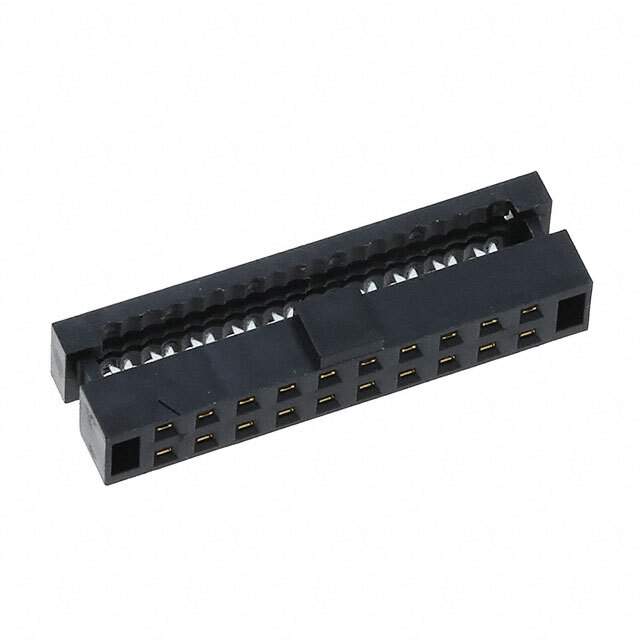

TCSD-10-01-N Real Image
Same model may have multiple batches, images only for reference.

TCSD-10-01-N

Part No TCSD-10-01-N
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 20POS IDC 28AWG GOLD  /  20 Position Rectangular Receptacle Connector IDC Gold 28 AWG
Datasheet
TCSD-10-01-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Samtec Inc.
Series Tiger Eye™ TCSD
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Fastening Type Push-Pull
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 28 AWG
Features Feed Through, Polarizing Key
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Base Product Number TCSD-10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Names Q3634629,TCSD-10-01-N-ND,SAM9024
Standard Package 24
Win Source Part Number 1029420-TCSD-10-01-N
Ultra Librarian 3D Model Ultra Librarian TCSD-10-01-N CAD Model

Description

The TCSD-10-01-N is a rectangular connector manufactured by Samtec Inc.

  • Series: Tiger Eye™ TCSD
  • Positions: 20
  • Pitch: 0.079" (2.00mm)
  • Features: Polarizing Key
  • Fastening Type: Push-Pull
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Suitable for: Ribbon Cable Wire Types
  • Wire Gauge: 28 AWG
