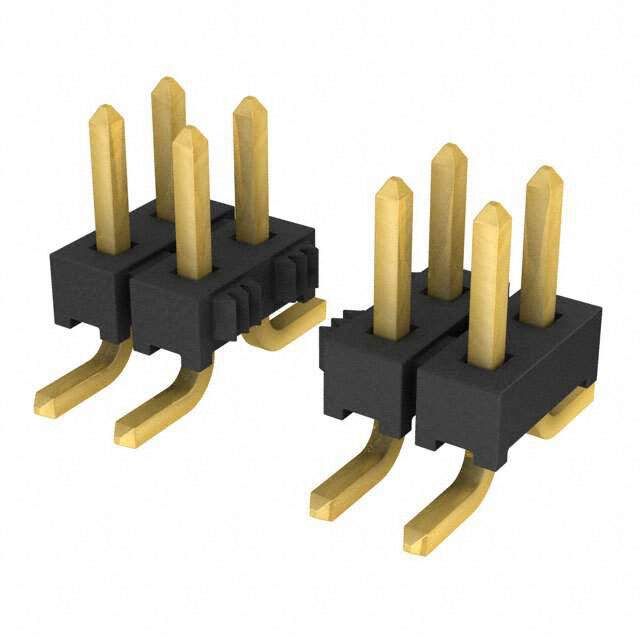

TMM-107-01-G-D-SM Real Image
Same model may have multiple batches, images only for reference.

TMM-107-01-G-D-SM

Part No TMM-107-01-G-D-SM
Manufacturer Samtec Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 14POS 2MM / Connector Header Surface Mount 14 position 0.079" (2.00mm)
Datasheet
TMM-107-01-G-D-SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TMM
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.126" (3.20mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.2A per Contact
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number TMM-107
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1167-07
Standard Package 41
Win Source Part Number 1014423-TMM-107-01-G-D-SM
Ultra Librarian 3D Model Ultra Librarian TMM-107-01-G-D-SM CAD Model

Description

The 1014423-TMM-107-01-G-D-SM from the TMM Series Connector is a rectangular connector manufactured by Samtec Inc.

  • Connector Type: Header
  • Contact Type: Male Pin
  • Number of Positions Loaded: 14
  • Number of Rows: 2
  • Termination: Solder
  • Pitch-Mating: 0.079 inches
  • Current Rating: 3.2A per Contact
  • REACH: Unaffected
  • Type: Elevated Socket
  • Packaging: Tube
  • Standard Package: 41
