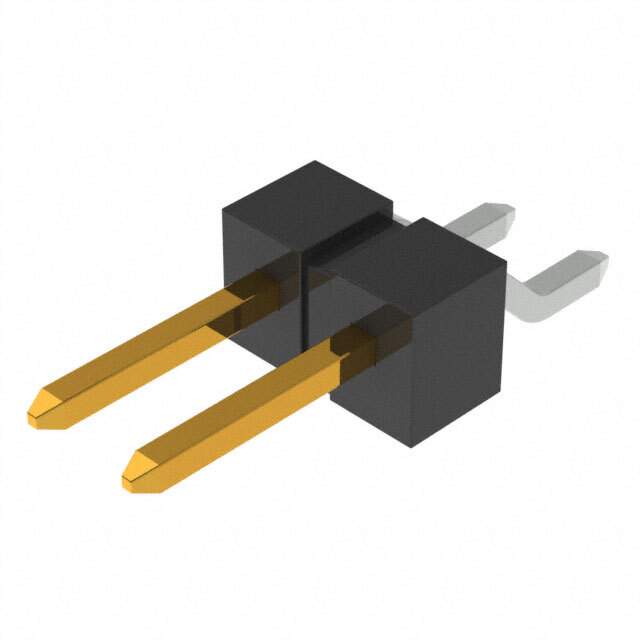

TSM-102-01-S-SH-P-TR

Name: TSM-102-01-S-SH-P-TR
Brand: Samtec Inc.
SKU: 809476
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM-102-01-S-SH-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 2POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.120" (3.05mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Manufacturer Pack Quantity	400
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809477-TSM-102-01-S-SH-P-TR
Ultra Librarian 3D Model	Ultra Librarian TSM-102-01-S-SH-P-TR CAD Model

Alternative Products

Description

The TSM-102-01-S-SH-P-TR header connector from Samtec Inc. has a surface mount, right angle mounting style.

Positions: Two
Connection: Board to Board, Cable
Packaging: Reel
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Gold (30.0μin (0.76μm))
Contact Material: Phosphor Bronze
Post Contact Finish: Tin
Insulation Height: 0.120" (3.05mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Manufacturer Pack Quantity: 400
