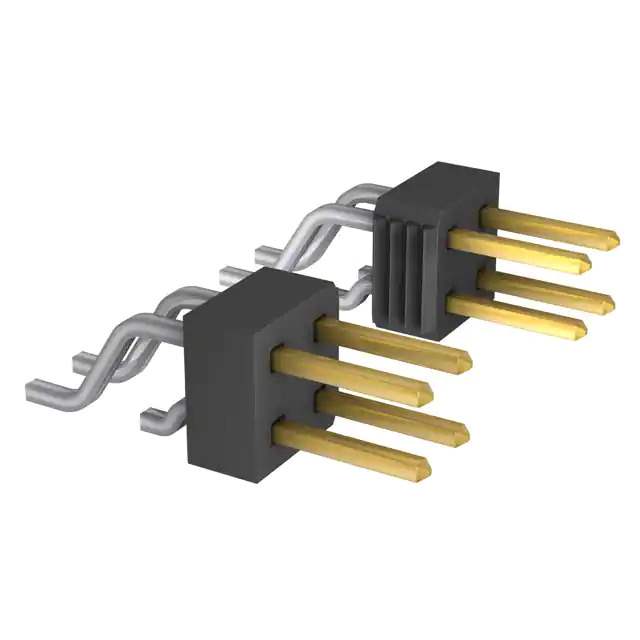

TSM-105-01-S-DH Real Image
Same model may have multiple batches, images only for reference.

TSM-105-01-S-DH

Part No TSM-105-01-S-DH
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 10POS 2.54MM / Connector Header Surface Mount, Right Angle 10 position 0.100" (2.54mm)
Datasheet
TSM-105-01-S-DH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSM
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.240" (6.10mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TSM-105
Standard Package 44 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 937716-TSM-105-01-S-DH
Ultra Librarian 3D Model Ultra Librarian TSM-105-01-S-DH CAD Model

Description

The TSM series male pin header connector is a versatile component for various electronic applications.

  • Pitch: 0.100" (2.54mm)
  • Positions Loaded: 10
  • Rows: 2
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold (30.0µin or 0.76µm)
  • Termination: Solder
  • Mounting Type: Surface Mount or Right-Angle
  • Shrouding: Unshrouded
  • Insulation Material: Black Liquid Crystal Polymer (LCP)
  • Operating Temperature: -55°C to 125°C
  • Product Status: Active (Samtec Inc.)
  • Compliance: California Prop 65
