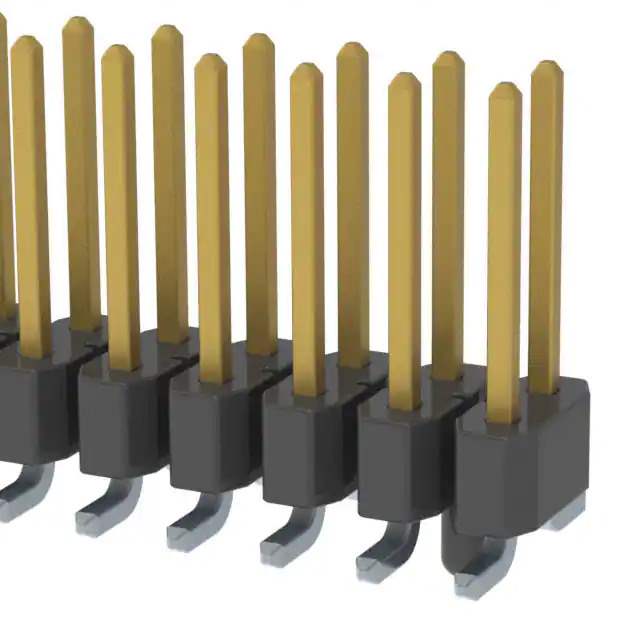

TSM-110-02-L-DV-A-P-TR

Name: TSM-110-02-L-DV-A-P-TR
Brand: Samtec Inc.
SKU: 901342
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM-110-02-L-DV-A-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 2.54MM / Connector Header Surface Mount 20 position 0.100" (2.54mm)
Datasheet	TSM-110-02-L-DV-A-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSM
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.320" (8.13mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-110
Standard Package	125 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	901342-TSM-110-02-L-DV-A-P-TR
Ultra Librarian 3D Model	Ultra Librarian TSM-110-02-L-DV-A-P-TR CAD Model

Alternative Products

Description

The TSM-110-02-L-DV-A-P-TR is a 20-position male pin header connector from Samtec Inc. It is part of the TSM series and features a board guide and pick and place capabilities.

Series: TSM
Positions: 20
Features: board guide and pick and place capabilities
Termination: surface mount
Fastening: push-pull
Contact Material: phosphor bronze
Contact Finish (Mating): gold
Contact Finish Thickness: 10.0μin (0.25μm)
Insulation Material: black liquid crystal polymer (LCP)
Insulation Height: 0.100" (2.54mm)
Contact Shape: square
Operating Temperature: -55°C to 125°C
Packaging: tape & reel, 125 pcs
