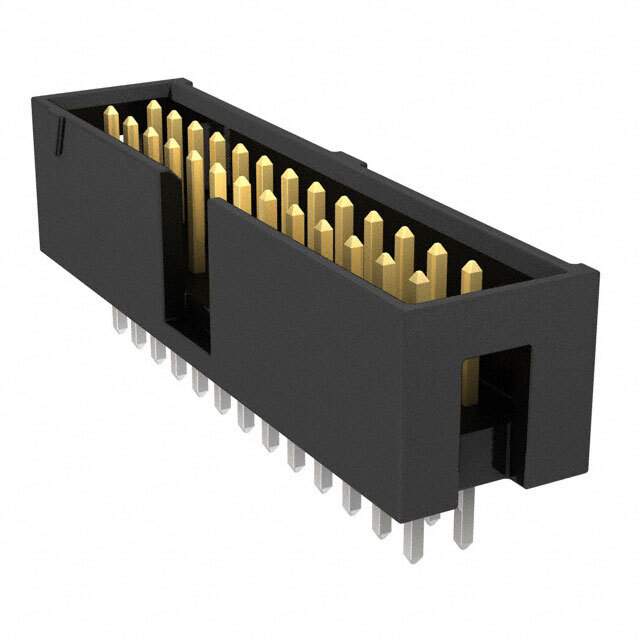

TSS-113-01-L-D

Name: TSS-113-01-L-D
Brand: Samtec Inc.
SKU: 798511
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TSS-113-01-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	LOW PROFILE .025 SQ STRIPS / Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk
Datasheet	TSS-113-01-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	Flex Stack, TSS
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Contact Length - Post	0.115" (2.92mm)
Overall Contact Length	0.480" (12.19mm)
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Keying Slot
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	3A
Win Source Part Number	798511-TSS-113-01-L-D
Popularity	Medium
Supply and Demand Status	Limited
Family Name	TSS
Introduction Date	March 22, 2001
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian TSS-113-01-L-D CAD Model

Alternative Products

Description

The Samtec Inc. TSS-113-01-L-D is a header connector that is designed for board to board or cable applications.

Keying: Keying slot
Shrouding: 4 walls
Pitch: 0.100" (2.54mm)
Material: Polybutylene terephthalate (PBT) and phosphor bronze
Current Rating: 3A
Operating Temperature: -55°C to 125°C
Alternative Parts: A-TSS-113-01-G-D, A-TSS-113-01-F-D, A-TSS-113-01-S-D, A-TSS-113-01-L-D
